Home ProductsElectronic Testing Equipment

Mobile Phone Electronics Battery Drop Tester Battery Pack Drop Tester

Mobile Phone Electronics Battery Drop Tester Battery Pack Drop Tester

    • Mobile Phone Electronics Battery Drop Tester Battery Pack Drop Tester
    • Mobile Phone Electronics Battery Drop Tester Battery Pack Drop Tester
  • Mobile Phone Electronics Battery Drop Tester Battery Pack Drop Tester

    Product Details:

    Place of Origin: China
    Brand Name: SKYLINE
    Certification: CE

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 unit
    Price: Negoitable
    Packaging Details: plywood case
    Delivery Time: 15 working days
    Payment Terms: Western Union, MoneyGram, T/T
    Supply Ability: 1 pcs/ month
    Contact Now
    Detailed Product Description
    SKYLINE: Drop-Test-Machine-Product Maximum Weight Of Test Piece: 2kg±100g
    Drop Height: 400 ~ 1500mm (adjustable) Drop Height Scale: Accuracy 1mm
    The Use Of Air Pressure:: 0.4 MPa Power: 1 ∮, 220V, 3A

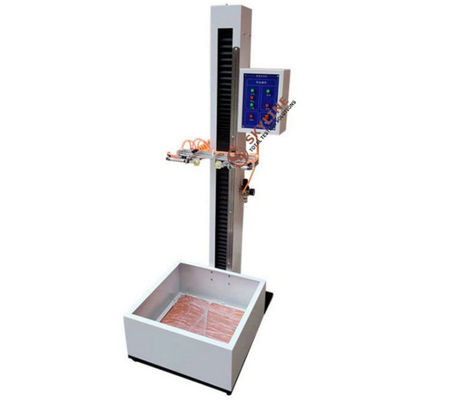

    Drop test machine product



    Use
    This machine is suitable for mobile phone (mobile phone), walkie-talkie, electronic dictionary, building intercom, CD/MD/MP3 and other small consumer electronic products and parts free fall test; the machine uses pneumatic structure, will be tested Put it in a special fixture (adjustable stroke), press the down button, the cylinder will be loose, the test piece will be free fall test, the drop height can be adjusted up and down, the altimeter can know the drop height of the test piece, the key components of the machine Reliable performance, a variety of drop floor available.

    Standards
    UN38.3, IEC62133, QC/T743-201X



    Technical parameters

     Maximum weight of test piece  2kg±100g
     Drop height  400 ~ 1500mm (adjustable)
     Drop height scale  accuracy 1mm
     Clamping method  pneumatic clamp
     Falling floor media  acrylic plate, stainless steel plate (customer-supplied)
     The drop method  free fall
     The bottom plate size  560x410mm
     The use of air pressure  0.4 MPa
     Machine size  700x900x1650mm
     Weight  80kg
     Power  1 ∮, 220V, 3A



    Mobile Phone Electronics Battery Drop Tester Battery Pack Drop Tester
