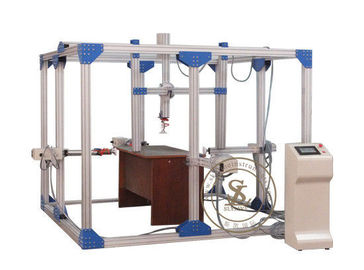

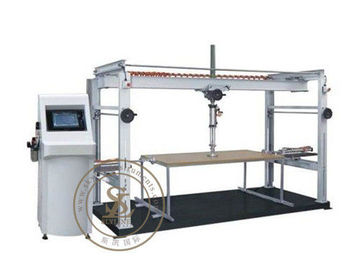

BIFMA X5.1 PLC+ Touch Screen Furniture Testing Equipment , Stability Testing Equipment For Tables And Trolleys

BIFMA X5.1 PLC+ Touch Screen Furniture Testing Equipment , Stability Testing Equipment For Tables And Trolleys

    • BIFMA X5.1 PLC+ Touch Screen Furniture Testing Equipment , Stability Testing Equipment For Tables And Trolleys
    • BIFMA X5.1 PLC+ Touch Screen Furniture Testing Equipment , Stability Testing Equipment For Tables And Trolleys
  • BIFMA X5.1 PLC+ Touch Screen Furniture Testing Equipment , Stability Testing Equipment For Tables And Trolleys

    Product Details:

    Place of Origin: China
    Brand Name: SKYLINE
    Certification: CE
    Model Number: SL-T26

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 unit
    Packaging Details: plywood case
    Delivery Time: 35 working days
    Payment Terms: Western Union, T/T, MoneyGram
    Supply Ability: 1 pcs/ month
    Contact Now
    Detailed Product Description
    SKYLINE: Furniture Testing Equipment Controller: PLC+ Touch Screen
    Motor: Air Cylinders Standard: EN 527-3, EN581-3 And BIFMA X5.1, IS5967
    Air Supply: 7kgf/cm^2 Capacity: 2KN,4 Pcs;5KN,1 Pcs

    IS5967 Furniture Testing Equipment Strength and Stability Testing Machine for Tables and Trollys



    Features

    1 It equips 5 group pneumatic cylinder which is 1 set vertical device and 4 set calibrate velocity & thrust separately. Stroke is 500mm
    2 Quadruplet brake of vertical device can be adjustment front and back & up and down (100mm~900mm)
    3 Quadruplet brake of horizontal device can be adjustment up and down & left and right, it can cooperate with different test position.
    4 it has several rows screws hole in the bottom panel of tester which is convenient to install different accessory or fixed test condition
    5 it equipped the quick coupling location in front of pneumatic brake for each group which is convenient to change different load or grip.
    6 color touch screen & PLC controller, easy operate interface, display imaging and more inconvenient for operator.


    This test machine is used for testing the strength and stability of tables and trollys.Can do following testing


    Strength testing

    1. Vertical static load test
    2. Sustained load test
    3. Horizontal static load test
    4. Vertical impact test



    Stability Testing:

    1. Vertical stability test
    2. Horizontal impact test.



    Technical parameter

    a.Frame(Alluminium)

    -6 vertical post - 4 fixed. 2 adjustable position along the frame length (3m) to hold horizontal cylinder

    -5 horizontal cross bar -4 fixed . 1 adjustable position along the frame length(3m) and height (2m) to hold vertical cylinder,adjustable position & height

    b.Size: 2m×3m×2m(H)

    c.Loading pad (BS BN requirement)& bag weight 91kg(BIFMA requirement)

    d.Type of cylinder:Double-acting cylinder

    e.Maximum force:2000 Newton

    f.1 unit horizontal cylinder

    -To apply a horizontal force for tilting and legs/glide tests.

    -Attached to the pulley system(adjustable & removable

    -Adjustable height (500-1800mm) & horizontal position (along the frame length,3m)

    -Stroke length:500mm

    g.1 unit vertical cylinder

    -To apply a vertical force for back rest, tablet and arm rest tests

    -Adjustable position along the cross bar(2m)

    -Stroke length:500mm

    h.High and position adjustment,powered

    i.Voltage:single phase AC 220V 50/60HZ

    j.Compress air:6kg/cm²

    k.Control button

    -ON/OFF button

    -Load display

    -Cycle display - 6 - digit

    -Force holding time:1 minute(strength test)

    l.Stopper - to restrain the furniture base from sliding 12mm thickness.



    Specification

     Basic Test Frame  2.5x2.5x2m,be made of 80x80mm Alu.material
     Load air cylinder  diameter 50mm, 4 pcs,stroke 300mm,max load force up to 1500N
     Impact cylinder  diameter 50mm, 1pcs, stroke 400mm
     Load air cylinder  diameter 80mm,1pcs,stroke 500mm, max load force up to 2500N
     Force sensor  high precision sensor,capacity 2KN,4 pcs;5KN,1 pcs
     Control way  touch screen + PLC control
     Counter  0~999999 times (can by adjusted)
     Force adjust  precision pressure valve equipment with sensor to disply
     Air supply  7kgf/cm^2
     Power  1∮ AC 220V 50Hz 5A


    Testing Standards
    EN 527-3, EN581-3 and BIFMA X5.1, IS5967

    EN 1725:1998 7.3 Durability test
    EN 1725:1998 7.5 Durability of bed edge
    EN 1725:1998 7.6 Vertical static load test

    BIFMA X5.1 PLC+ Touch Screen Furniture Testing Equipment , Stability Testing Equipment For Tables And Trolleys
