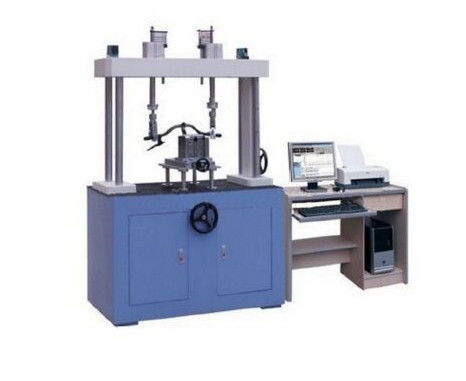

Electric Bicycle Handlebar Bending Strength Testing Machine With Computer Servo Control

Electric Bicycle Handlebar Bending Strength Testing Machine With Computer Servo Control

  • Electric Bicycle Handlebar Bending Strength Testing Machine With Computer Servo Control
Electric Bicycle Handlebar Bending Strength Testing Machine With Computer Servo Control
Product Details:
Place of Origin: China
Brand Name: SKYLINE
Certification: CE
Payment & Shipping Terms:
Minimum Order Quantity: 1 unit
Packaging Details: plywood case
Delivery Time: 15 working days
Payment Terms: Western Union, MoneyGram, T/T
Supply Ability: 1 pcs/ month
Contact Now
Detailed Product Description
SKYLINE: Electric Bicycle Handlebar Bending Strength Testing Machine The Range Of Force: 0 ~ 2000N Can Be Preset
Load Analysis Degree: 1/250000 Load Accuracy: ± 0.2%
Bending Range: 0 ~ 800mm Adjustable Control Mode: Computer Servo Control
High Light:

physical testing equipment

,

brake testing equipment

Electric Bicycle Handlebar Bending Strength Testing Machine



Overview

The electric bicycle uses the riser bending strength testing machine to simulate the dynamic loading of the handlebar riser of the electric bicycle, control the cylinder movement through the computer output signal, and collect the force sensor signal to realize the simulation test process of the dynamic fatigue of the handlebar. Mainly used for bending fatigue characteristics test of handlebars.



Fulfill the standard

EN 14.764-2005 "City and Tourism Bicycles - Safety Requirements and Test Methods" in the requirements of Clause 4.7.7;

EN 14.76-2005 "Mountain biking - safety requirements and test methods" in the requirements of clause 4.7.7;

EN14781-2005 "Bicycles for competition - Safety requirements and test methods", the requirements of clause 4.7.7;

Clause 4.8.6 of the EN 14765-2005 "Safety Requirements and Test Methods for Children's Bicycles" standard;

ISO 4210-5-2014 "Bicycle-Bicycle Safety Requirements - Part 5: Handlebar Test Methods", Section 4.9 of the Standard;

ISO 4210-2-2014 "Bicycle-Bicycle Safety Requirements - Part 2: Requirements for Urban and Travel Vehicles, Youth Vehicles, Mountain and Race Bicycles", Section 4.7.7 of the Standards;

ISO 4210-3-2014 "Bicycle-Bicycle Safety Requirements - Part 3: General Test Methods", Clause 4.5 of the standard;



The main technical parameters

 Control mode  computer servo control
 The range of force  0 ~ 2000N can be preset
 Unit switching  Kg, N, Lb (can be switched freely)
 Load analysis degree  1/250000
 Load accuracy  ± 0.2%
 Displacement switching  mm, cm, in
 The strength measurement display accuracy  0.001Kg
 Displacement measurement display accuracy  0.001mm
 Bending range  0 ~ 800mm adjustable
 Test speed  1 ~ 350mm / min (stepless speed regulation)
 Transmission system  servo motor, Taiwan ZPT ball screw, computer software TM2101
 Safety device  overload emergency stop device, upper and lower stroke limit device, automatic breakpoint stop function
 Data acquisition system  36-bit high-speed capture card
 Software control  ability to control frequency, load time, and pause time
 Test results show  computer automatic digital and curve dual display
 Data storage  computer automatic storage
 Report generation method  The test report can be automatically generated according to the settings and customer requirements
 Data storage  the system automatically saves all data during the test
 Stop mode  the power can not reach the set value automatically stop / test piece damage automatically stop



Features

1. Sensor US World Brand;

2. Visual force value curve;

3. Software program protection;

4. The interface is easy to operate;

5. The result is self-output.
