QB / T2902-2007 Luggage Tumble Tester / Suitcase Luggage Leather Case Drump Roller Drop Tester

QB / T2902-2007 Luggage Tumble Tester / Suitcase Luggage Leather Case Drump Roller Drop Tester

    • QB / T2902-2007 Luggage Tumble Tester / Suitcase Luggage Leather Case Drump Roller Drop Tester
    • QB / T2902-2007 Luggage Tumble Tester / Suitcase Luggage Leather Case Drump Roller Drop Tester
    • QB / T2902-2007 Luggage Tumble Tester / Suitcase Luggage Leather Case Drump Roller Drop Tester
  • QB / T2902-2007 Luggage Tumble Tester / Suitcase Luggage Leather Case Drump Roller Drop Tester

    Product Details:

    Place of Origin: China
    Brand Name: SKYLINE
    Certification: calibration certificate
    Model Number: SL-TL04

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 unit
    Price: Negoitable
    Packaging Details: Plywood case
    Delivery Time: 15 working days
    Payment Terms: Western Union, T/T, MoneyGram
    Supply Ability: 2 pcs/ month
    Contact Now
    Detailed Product Description
    SKYLINE: Luggage Tumble Tester Adjustable Angle: ±180 0
    Load: Max 50 Lb Bench Load: 3860 Kg
    Bench Size: 2400mm X 2100 Mm × 2350mm Time Frequency: 0 – 10 Times / Min

    SL-TL04 Luggage Tumble Tester



    Product Description

    Suitcase rolling impact tester applies to damage test of luggage and package. By simulating the transport process,such as dropping,impacting,rolling; in order to inspect the protecting ability toward the luggage and its inner things.And the result can be the reference of improvement.



    Usage

    When the product is moved or transported, it may fall down causing damage to the internal product. Before the damage is prevented, the machine can be used to anticipate testing so as to find the best solution so as to minimize the amount of the product loss during transportation.



    The Features:

    Professional suitcase roller Measuring Machine applies to damage test of luggage and package by simulating the transport process,such as dropping,impacting,rolling;in order to inspect the protecting ability toward the luggage and its inner things.And the result can be the reference of improvement.



    Parameters

     Mode  SL-TL04
     Roller diameter and depth  72 inch
     Depth  48 inch
     Roller speed  1.62 r.m.p
     Obstacles specification  60degrees obstacles 3 groups
     Sample size  1000×700×400mm
     Counter  LCD display, 0-99999999 can be set
     Machine size  2400×2100×2350mm
     Weight  3860kg
     Power  AC380V
    Design criteria  QB/T2902-2007

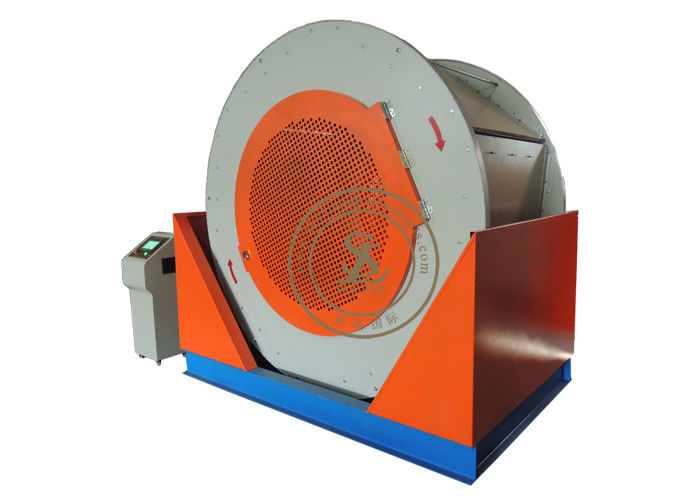

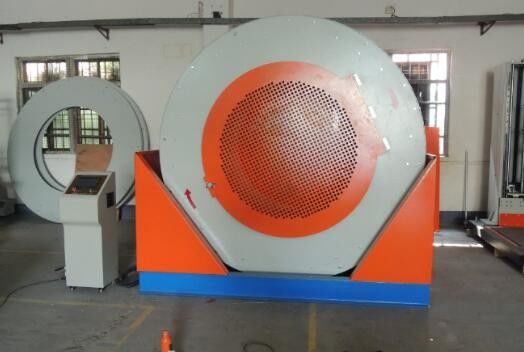

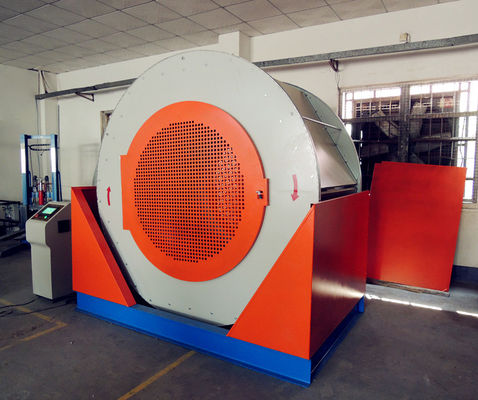

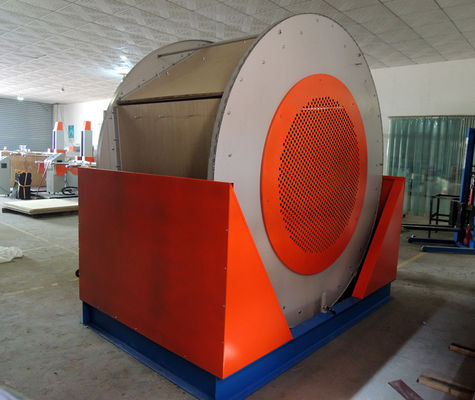

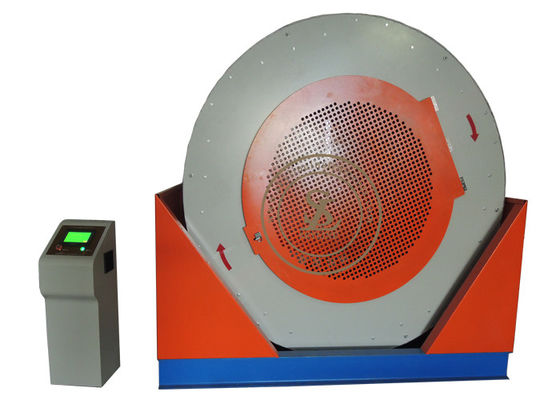

    The picture of the machine: SL-TL04 Luggage Tumble Tester



    QB / T2902-2007 Luggage Tumble Tester / Suitcase Luggage Leather Case Drump Roller Drop Tester
