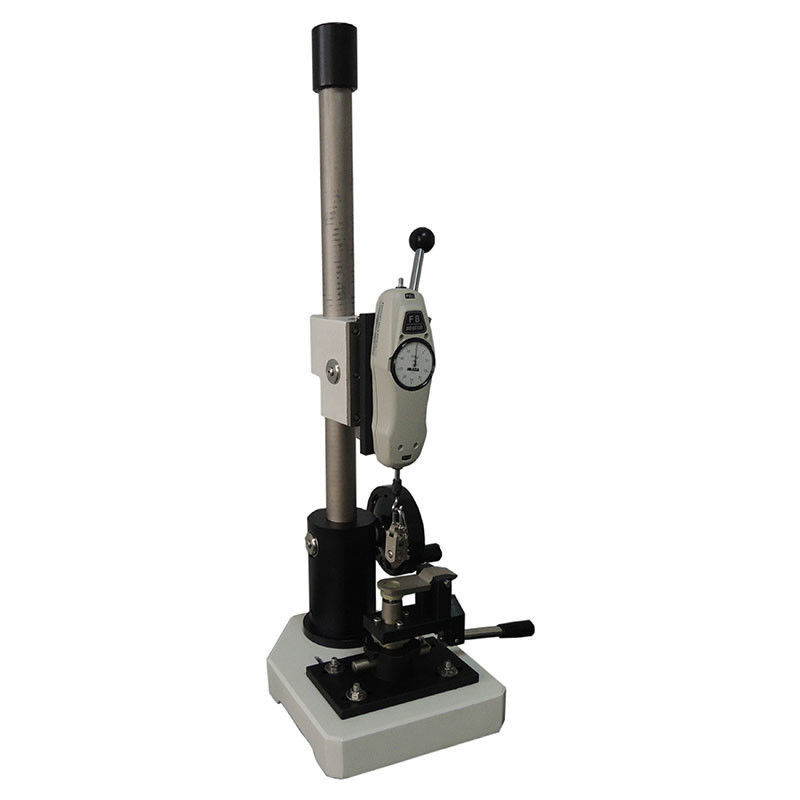

ASTM PS79-96 Button Snap Pull Tester with Mechanical Stand for Imada Pull Gauge

ASTM PS79-96 Button Snap Pull Tester with Mechanical Stand for Imada Pull Gauge

  • ASTM PS79-96 Button Snap Pull Tester with Mechanical Stand for Imada Pull Gauge
  • ASTM PS79-96 Button Snap Pull Tester with Mechanical Stand for Imada Pull Gauge
  • ASTM PS79-96 Button Snap Pull Tester with Mechanical Stand for Imada Pull Gauge
  • ASTM PS79-96 Button Snap Pull Tester with Mechanical Stand for Imada Pull Gauge
  • ASTM PS79-96 Button Snap Pull Tester with Mechanical Stand for Imada Pull Gauge
ASTM PS79-96 Button Snap Pull Tester with Mechanical Stand for Imada Pull Gauge
Product Details:
Place of Origin: China
Brand Name: SKYLINE
Certification: Calibration Certificate
Model Number: SL-F14B
Payment & Shipping Terms:
Minimum Order Quantity: 1 UNIT
Price: Negoitable
Packaging Details: Carton box
Delivery Time: 10 working days
Payment Terms: T/T, Western Union, Western Union
Supply Ability: 2 unit/ week
Contact Now
Detailed Product Description
Standard: ASTM PS79-96,ASTM F963 Etc Load Capacity: 500N
Load Gauge Accuracy: ±0.1% Of Full Scale Readability: 1N
Diameter Of Pressing Ring: 15mm 35mm Instrument Dimension: 320*380*700mm
High Light:

physical testing equipment

,

brake testing equipment

Button Snap Pull Tester



Applications

Snap Button Tester is used to determine the holding or breaking strength of prong ring attached snap fasteners onto garments, prevent the buttons divorce from the clothing,which case the dangerous if babyswallowing the buttons. So that every button and fixed parts on the clothing are required the detectionof the button pull test.



Standards

Complete standard package including Individual Items 1-10.



Specifications

1.Imada mechanical force gauge FB-50K

2.Upper Universal Grip for female part of snap

3.Upper Stud Clamp for male part of snap

4.Lower Fabric Clamp

5.Upper three pronged grip

6.Long Nose Vise Grip

7.Mechanical Stand for Imada Pull Gauge

8.Upper Three Pronged Grip

9.Upper Grasp Button Grip

10.Goggles



Technial parameters

 Model  SL-F14B
 Load capacity  500N
 Load gauge Accuracy  ±0.1% of full scale
 Readability  1N
 Diameter of Pressing ring  15mm 35mm
 Instrument Dimension  320*380*700mm
 Weight  38kg
 Standard  ASTM PS79-96,ASTM F963 etc



What is button Pull test?

Button pulls test is used to determine the pulling strength of any type of button and snaps used in garments. It is also used to determine the holding or breaking strength of prong ring attached snap fasteners onto garments to ensure the button fixed on the garments product properly.





ASTM PS79-96 Button Snap Pull Tester with Mechanical Stand for Imada Pull Gauge 0ASTM PS79-96 Button Snap Pull Tester with Mechanical Stand for Imada Pull Gauge 1



Lower Fabric Clamp/ Level Arm Locking                       Lower Grasp Button Accessory Kit







ASTM PS79-96 Button Snap Pull Tester with Mechanical Stand for Imada Pull Gauge 2



15LBs Calibration Weight
