Shoe Material Heat Test Machine For Test The High Temperature Resistance of Sole Materials

Shoe Material Heat Test Machine For Test The High Temperature Resistance of Sole Materials

  • Shoe Material Heat Test Machine For Test The High Temperature Resistance of Sole Materials
Shoe Material Heat Test Machine For Test The High Temperature Resistance of Sole Materials
Product Details:
Place of Origin: CN
Brand Name: SKYLINE
Certification: CE
Model Number: SL-L36
Payment & Shipping Terms:
Minimum Order Quantity: 1 unit
Price: negoitable
Packaging Details: plywood case
Delivery Time: 15 work days
Payment Terms: Western Union, MoneyGram, T/T
Contact Now
Detailed Product Description
SKYLINE: Shoe Material Heat Test Machine Standards: SATRA TM49, EN 344
Test Piece: 70*30mm Pressure: 20±2kpa
Weight: 15kg Power: AC220V 50HZ
High Light:

abrasion resistance tester

,

shoe wear tester

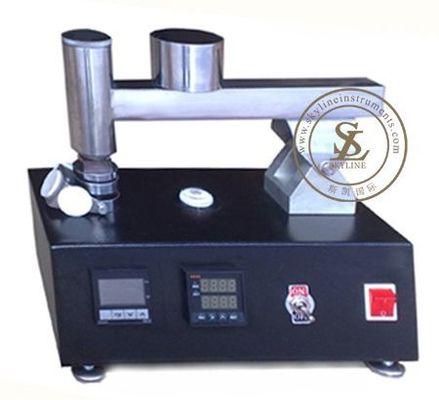

SL-L36 Shoe Material Heat Test Machine



Product description

Shoe Material Heat Resistance Tester is used to determine the ability of the shoe materials (upper, lining and sole material) to withstand the heat due

to shoemaking operation such as embossing, crimping, toe, and seat flanging, hot blasting etc. Place the specimen in contact

With a hot metal surface under a constant pressure for a short fixed period of time to assess visually if there is any damage

to its surface.


Use
This machine is used to test the high temperature resistance of sole materials (including rubber, polymer).
After the sample and the heat source (constant temperature metal block) are contacted at a fixed pressure for about 60 seconds, the surface damage degree of the test piece, such as softening, melting, cracking, etc., is judged according to the standard to determine whether the test piece is qualified.


Standards compliant
SATRA TM49, EN 344, LD32, EN ISO 20344


Technical parameters

 Test piece  70*30mm
 Test temperature  normal temperature ~400 degrees
 Self-calibration table diameter  40mm
 Pressure  20±2kpa
 Volume  30*20*33cm
 Weight  15kg
 Power  AC220V 50HZ
