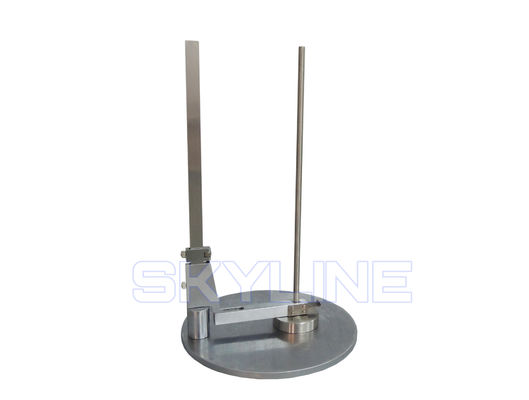

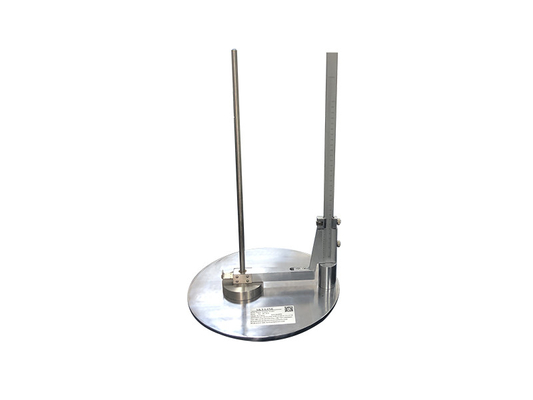

EN71 -1 Stainless Steel 1kg Toys Safety Impact Testing Machine

EN71 -1 Stainless Steel 1kg Toys Safety Impact Testing Machine

    • EN71 -1 Stainless Steel 1kg Toys Safety Impact Testing Machine
    • EN71 -1 Stainless Steel 1kg Toys Safety Impact Testing Machine
    • EN71 -1 Stainless Steel 1kg Toys Safety Impact Testing Machine
    • EN71 -1 Stainless Steel 1kg Toys Safety Impact Testing Machine
    • EN71 -1 Stainless Steel 1kg Toys Safety Impact Testing Machine
    • EN71 -1 Stainless Steel 1kg Toys Safety Impact Testing Machine
  • EN71 -1 Stainless Steel 1kg Toys Safety Impact Testing Machine

    Product Details:

    Place of Origin: CHINA
    Brand Name: SKYLINE
    Certification: CE
    Model Number: SL-S11

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 unit
    Price: negoitable
    Packaging Details: plywood case
    Delivery Time: 10 work days
    Payment Terms: T/T, Western Union, MoneyGram
    Supply Ability: 1 unit
    Contact Now
    Detailed Product Description
    SKYLINE: EN71 Impact Tester Standards: ISO 8124-1 EN-71
    Impact Hammer Weight: 1kg Impact Hammer Diameter: 80.00mm
    Adjust Height: 0-200mm Warranty: 18 Months

    Stainless Steel EN71 -1 1kg Impact Tester Toys Testing Equipment



    Product Information

    To simulate the mechanical damage through an impact action likely to be performed by a child. Assessment of sharp edges, sharp points and small parts may be carried out after impact. With metric imperial unit height dictate rule



    Application

    Used to test toy parts protection devices (such as transparent material protection cover / helmet / hat / goggles, etc.)



    Specifications

     Dimension  300(l) x300(w) x16(h) mm
     Adjust height  0-200mm
     Impact hammer diameter  80.00mm
     Impact hammer weight  1Kg
     Material  steel, surface chrome plating


    Testing Standards

    EN 71-1998 8.7 EN1400,ISO8124



    Method of use and judgment result
    1. Place the toy at the weakest position on the surface of a horizontal steel plate;
    2. The metal block with a mass of 1±0.02kg and a diameter of 80±2mm is freely dropped from the height of 100±2mm onto the toy;
    3. Repeat again.
    4. Judgment: Punctuation, sharp edges, small objects or bursts are considered unqualified after the test.

    EN71 -1 Stainless Steel 1kg Toys Safety Impact Testing Machine
