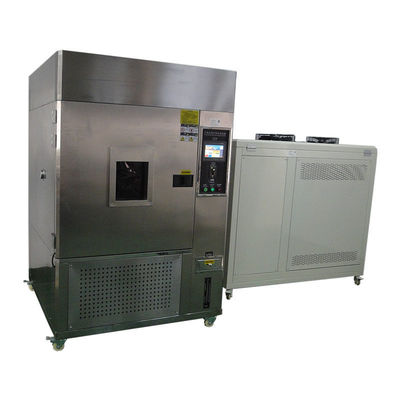

Comprehensive Climate Testing Machine Water Cooled 512L Xenon Weathering Test Chamber

Comprehensive Climate Testing Machine Water Cooled 512L Xenon Weathering Test Chamber

    • Comprehensive Climate Testing Machine Water Cooled 512L Xenon Weathering Test Chamber
    • Comprehensive Climate Testing Machine Water Cooled 512L Xenon Weathering Test Chamber
    • Comprehensive Climate Testing Machine Water Cooled 512L Xenon Weathering Test Chamber
  • Comprehensive Climate Testing Machine Water Cooled 512L Xenon Weathering Test Chamber

    Product Details:

    Place of Origin: China
    Brand Name: SKYLINE
    Certification: CE
    Model Number: SL-E07

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 unit
    Packaging Details: plywood case
    Delivery Time: 15 working days
    Payment Terms: Western Union, T/T, MoneyGram
    Supply Ability: 10 pcs/ month
    Contact Now
    Detailed Product Description
    SKYLINE: Xenon Weathering Test Chamber Xenon Lamp: 3KW
    Inner Dimension: 800x800x800 Humid. Range: 65%— 98% R. H
    Temp. Range: RT-85º C Wind Speed: 1~1.5m/s

    512L Water Cooled Xenon Wethering Testing Chamber with Stainless Steel working chamber



    Product introduction

    Xenon arc lamp test chamber is a comprehensive climate testing machine, it can do climatic aging test, and also can do fading acceleration test under color effect or color changed. The test range including: dying and finishing, printing, leather, plastic, plyglass, painting, textile, printing ink, rubber and also the industry relative color. Light fastness and fade grade can be known in short time. Those materials exposed at simulated sunlight to evaluated the material’s light fastness performance. To simulate and strengthen the test according to light energy, temperature, rain fall or condensation, humidity, .etc these main climate factors. Adopt simulated sunlight spectrum’s Xenon arc light to create destructive waves under different environment. It can be used for choosing new materials, improving existing materials, or assessment of durability change after material composed.



    Xenon lamp weathering tester tests the products undergone illumination, rain, condensation, temperature, humidity, wind and any other climatic changes. This tester is mainly for the test of non-ferrous/organic/rubber/plastic and building materials.



    Parameters

     Dimensions of the working chamber˄mm)  800× 800×800)(W×D×H)
     Temperature Range  RTć̚+80ć
     Humidity  Range˖Humidity range  light cycle 50% ~ 98% R.H, dark cycle 30% to 98%
     Blackboard Temperature˖Blackboard temperature  63+3ć (deviation ± 3 ° C)
     Temperature fluctuation  <=0.5 ć
     Temperature uniformity  <=2.0 ć
     Humidity fluctuation  + 2% ~ -3% R.H.
     Glass window filter  borosilicate glass
     Xenon light source  water cold xenon arc light source
     Water cold xenon lamp power  6KW, xenon lamp power: 6KW × 1 = 6KW
     Water cold Xenon lamp power˖1pcs Water pressure  138 ~ 344Kpa (20 ~ 50psi); Flow: minimum 0.6L / min. Xenon lamp cooling, spraying, humidification use of water: the requirements of the national analysis laboratory secondary water quality, water, solid impurities less than 1mg / L. Test chamber drain at the bottom of the box at the bottom of the rear. The ambient temperature of 23 ± 2 ć, relative humidity of <80%, not in a corrosive, toxic and harmful environment to install and use. Heater:Stainless steel 316L fin cooling tube electric heate



    Comprehensive Climate Testing Machine Water Cooled 512L Xenon Weathering Test Chamber



    Specimen rack / holder



    Features

    • Presetting various specifications, Custom program capability, meet diverse range of standards, including AATCC, ISO, BS, JIS etc;
    • Automatic compensating system (PATENT) control the Xenon Lamp Power;
    • Colorful touch screen, indicate the condition of chamber at real-time, be able to presetting irradiance, temperature (BPT, BST, chamber), humidity, and plot dynamic curve of them. The operator simply selects the required test module and test standards; English user interface, diagram indicate condition of chamber, easy to use;
    • PLC control, powerful program and storage property, save the parameters when interrupt of power supply.
    • Chamber temperature control, irradiation temperature, and heater raise the temperature, air conditioning refrigeration.
    • Irradiation control, light irradiance sensor monitor, digital setting, automatic compensating system, stepless adjustable.
    • Sample holder/ rack:360 degree rotating, can hold samples of different sizes
    • Xenon Arc Lamp to simulate the best full spectrum sunlight

    Comprehensive Climate Testing Machine Water Cooled 512L Xenon Weathering Test Chamber
