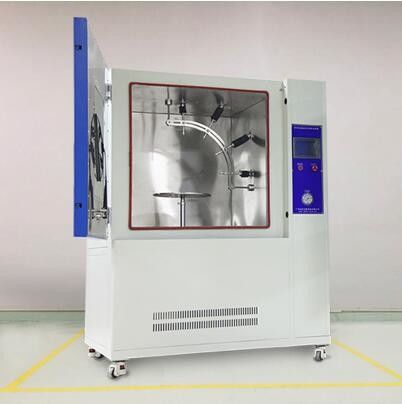

ISO 20653-2013 Environmental Test Chamber High Pressure Salt Spray Test Chamber

ISO 20653-2013 Environmental Test Chamber High Pressure Salt Spray Test Chamber

    • ISO 20653-2013 Environmental Test Chamber High Pressure Salt Spray Test Chamber
    • ISO 20653-2013 Environmental Test Chamber High Pressure Salt Spray Test Chamber
  • ISO 20653-2013 Environmental Test Chamber High Pressure Salt Spray Test Chamber

    Product Details:

    Place of Origin: CN
    Brand Name: SKYLINE
    Certification: CE
    Model Number: SL-IPX9K

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 unit
    Packaging Details: Plywood case
    Delivery Time: 10 working days
    Payment Terms: T/T, Western Union, MoneyGram
    Supply Ability: 10 pcs/ month
    Contact Now
    Detailed Product Description
    SKYLINE: High Pressure Spray Test Chamber Inner Box Size: 1000* Depth 1000* Height 1000 Mm
    Nozzle Angle: 0°, 30°, 60°, 90° (vertical Direction) Nozzle Distance: 100-200mm (can Be Adjusted Manually)
    Sample Turntable Diameter: 400mm Diameter Standard: ISO20653-2013

    ISO 20653-2013 High Pressure Salt Spray Test Chamber Turntable Rotation Speed 4~10 R / Min



    Equipment overview

    Application Background: The destruction of products and materials by natural water (rain, sea, river, etc.) causes an incalculable economic loss every year. The damage caused mainly includes corrosion, fading, deformation, strength drop, expansion, mildew, etc., especially electrical products are easily broken into fires due to short circuits caused by rain. Therefore, enclosure protection water testing for specific products or materials is an essential and critical process.

    General application areas: Automotive parts and other electronic and electrical products.

    Equipment function: The main function of the equipment is passenger cars, buses, tractors, motorcycles and other vehicles and their parts. Under the high pressure/steam jet cleaning process conditions, the physical and other related properties of the products are tested. After the test, the performance of the product is judged by the verification to meet the requirements, so as to facilitate the design, improvement, verification and factory inspection of the product.



    Features

    1. It is suitable for IPX9K waterproof rating test of products.

    2. The outer casing is made of domestic high-quality steel plate, and the surface is painted with baking varnish, which is beautiful and durable.

    3. The inner box and the turntable are all made of SUS304# stainless steel plate to ensure no rust for long time use.

    4. Box structure; self-contained water tank, circulating water; water tank float valve installed in the water tank, automatic control of water inlet, and low water level alarm detection, effectively preventing the pump from running dry and damaged.

    5. There is a transparent observation window (tempered glass material) on the door, and LED lighting is installed inside the box to facilitate observation of internal test conditions.

    6. Four fan-shaped nozzles are evenly distributed within 90° of the right side of the box, which are strictly designed according to the standard:

    7. The spray flow rate, pressure and temperature can be set on the touch screen.

    8. Turntable drive: the use of domestic high-quality stepper motor, speed and angle can be set on the touch screen (adjustable), accurate stepless adjustable within the standard range.

    9. The test box adopts the original imported water pump, which is resistant to high temperature and high pressure, and can be used for a long time with stable performance.

    10. The test time can be set on the touch screen. The setting range is 0-999min (adjustable).

    11. The core control system uses Taiwan Weilun 7-inch touch screen + Panasonic PLC, electrical components such as LS, Omron and other imported brands, wiring technology in line with national standards, the layout of the board is reasonable, the wiring is firm, clearly marked.

    12. According to customer requirements, increase communication functions, connect with the computer, print test data.



    Technical Parameters

    Structural parameters
    Inner box size 1000* depth 1000* height 1000 mm
    Outer size Approx. length 1400* depth 1180* height 1850 mm
    Number of orifices 4
    Nozzle angle 0°, 30°, 60°, 90° (vertical direction)
    Nozzle distance 100-200mm (can be adjusted manually)
    Sample turntable diameter 400mm diameter
    Turntable lifting method Fixed (non-adjustable)
    Function parameter
    Water spray flow rate 14~16L/min
    Water spray temperature Normal temperature (25 ° C); 80 ± 5 ° C (deviation temperature can be agreed)
    Water spray pressure 8000~10000 Kpa
    Turntable bearing weight 50kg
    Turntable rotation speed 4~10 r/min (precisely adjustable)
    Test time 120S (30S per position)
    Electrical parameter
    Equipment power supply 380V
    Test sample power supply 220V
    Equipment power 10.0KW
    Safety protection function Leakage protection, water shortage protection, short circuit protection





    ISO 20653-2013 Environmental Test Chamber High Pressure Salt Spray Test Chamber   ISO 20653-2013 Environmental Test Chamber High Pressure Salt Spray Test Chamber
