Touch Screen Lab Testing Equipment 50HZ Cross - Hook Test Machine

Touch Screen Lab Testing Equipment 50HZ Cross - Hook Test Machine

    • Touch Screen Lab Testing Equipment 50HZ Cross - Hook Test Machine
    • Touch Screen Lab Testing Equipment 50HZ Cross - Hook Test Machine
  • Touch Screen Lab Testing Equipment 50HZ Cross - Hook Test Machine

    Product Details:

    Place of Origin: CHINA
    Brand Name: SKYLINE
    Certification: Calibration certificate

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 unit
    Price: negoitable
    Packaging Details: Plywood case
    Delivery Time: 35 work days
    Payment Terms: T/T, Western Union, MoneyGram
    Supply Ability: 1 unit
    Contact Now
    Detailed Product Description
    SKYLINE: Touch Screen Cross-Hook Test Machine Click Power: 50-500gf
    Click Speed: 10-120 Times / Minute Working Voltage: 220VAC 50HZ

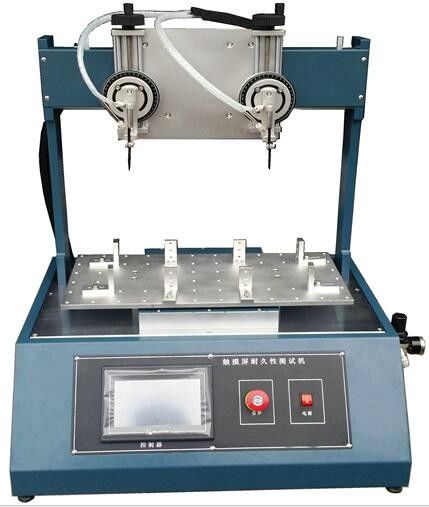

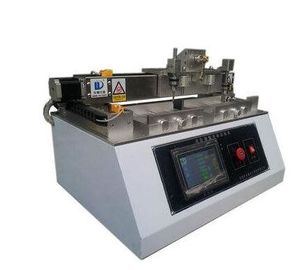

    Touch Screen Cross-Hook Test Machine



    Description of use

    This machine is a special testing equipment for small consumer electronic products such as mobile phones, dialogue machines and electronic dictionaries. It is mainly an endurance test for drawing and clicking on the handwriting screen.



    Performance

    1. Y axis movement range: 120mm

    2. Y-axis test speed: 300-7800mm/min

    3. Pressure range: 150-1000gf can be customized according to customer requirements

    4. Y-axis drive mode: electric drive mode

    5. Z-axis load mode: weight

    6. Click power: 50-500gf

    7. Click speed: 10-120 times / minute

    8. X-axis torque: 2.2Nm

    9.Test station (linkage): 6

    10. Control function:

    A. Digital setting running speed (Y axis)

    B. The number sets the running displacement (Y axis)

    C.The number sets the click speed (Z axis)

    D.The count value is 8-bit LCD display, and 1~~99999999 is set arbitrarily, power-off memory

    E.Line drawing method: reciprocating straight line

    11.Alarm function: count value to alarm and shutdown

    12.Alarm mode: sound and light

    13.Working voltage: 220VAC 50HZ



    Touch Screen Lab Testing Equipment 50HZ Cross - Hook Test Machine
