Wire Flame Test Chamber For Electric Cables Under Fire Conditions Circuit Integrity

Wire Flame Test Chamber For Electric Cables Under Fire Conditions Circuit Integrity

  • Wire Flame Test Chamber For Electric Cables Under Fire Conditions Circuit Integrity
  • Wire Flame Test Chamber For Electric Cables Under Fire Conditions Circuit Integrity
  • Wire Flame Test Chamber For Electric Cables Under Fire Conditions Circuit Integrity
  • Wire Flame Test Chamber For Electric Cables Under Fire Conditions Circuit Integrity
  • Wire Flame Test Chamber For Electric Cables Under Fire Conditions Circuit Integrity
  • Wire Flame Test Chamber For Electric Cables Under Fire Conditions Circuit Integrity
Wire Flame Test Chamber For Electric Cables Under Fire Conditions Circuit Integrity
Product Details:
Place of Origin: CHINA
Brand Name: SKYLINE
Certification: IEC60331-21
Model Number: SL-IEC33
Payment & Shipping Terms:
Minimum Order Quantity: 1 unit
Price: USD
Packaging Details: plywood case
Delivery Time: 30 work days
Payment Terms: T/T, D/P, Western Union, MoneyGram
Supply Ability: 1 UNIT/ MONTH
Contact Now
Detailed Product Description
Wire Flame: Tests For Electric Cables Under Fire Conditions Material: Stainless Steel
Combustion Chamber: Inner Dimensions: Combustion Chamber: Inner Dimensions: 3M X 3M X 3M Total 27 Cubic Meters. Flow Meter: Air Flow Meter: 80L/min
Temperature Range: 0~1000°C Can Be Set Arbitrarily. Test Transformer: 3000VA Three (2) Test Voltage: AC1000V
High Light:

flammability test chamber

,

flammability test apparatus

Wire Flame Test Chamber For Electric Cables Under Fire Conditions Circuit Integrity



Standards

IEC 60331-21

Tests for electric cables under fire conditions - Circuit integrity - Part 21: Procedures and requirements - Cables of rated voltage up to and including 0,6/1,0 kV



Specification

2. Cable and cable line integrity combustion test machine design principle:

The cable and cable integrity fire tester is divided into three parts: the combustion box, the combustion frame, and the control box, all of which are individually movable. Each device is equipped with casters at the bottom for easy movement and sanitation. A device used for cables and cables that require line integrity when using a flame with a temperature of not less than 750 ° C (control of heat output) for individual fire test

Cable and cable line integrity combustion test machine technical parameters:

1. Design of the combustion chamber

It is fixed to the angle iron bracket with a suitable material to form the entire cubic combustion chamber.

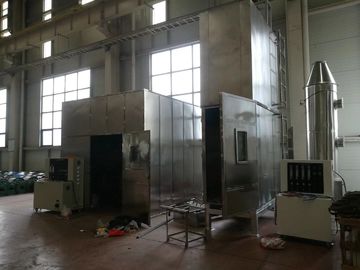

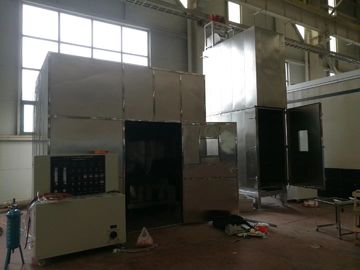

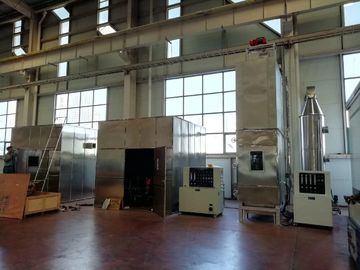

Combustion chamber: inner dimensions: 3M x 3M x 3M total 27 cubic meters.

Can be brick wall structure or steel plate structure, selected by customers

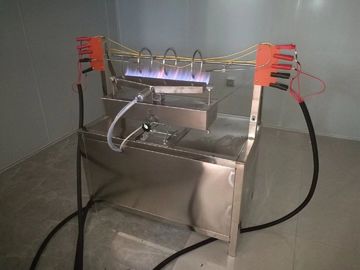

2. Sample holder: The sample consists of two or three metal ring supports with an inner diameter of approximately 150 mm.

3. Burning device:

(1) Blowtorch: A propane gas burner with a nominal length of 500 mm and a width of 15 mm for a nozzle with a venturi mixer.

(2) Flow meter: air flow meter: 80L/min, propane flow meter: 5L/min

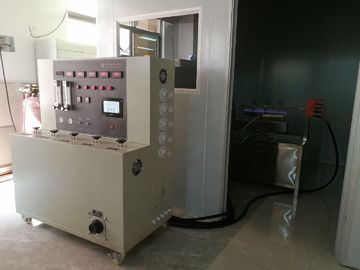

(3) The composition of the blowtorch control system: pressure regulating valve, piezoelectric igniter, flameout device, temperature control thermocouple,

Gas source (owned by your company), ignition device, gas pipeline, flow meter, venturi mixer,

Blowtorch, ball valve, air line, compressed air bottle (owned by your company)

(4) Timer: 0~99.99s/m/h can be set arbitrarily

(5) Ignition device: for automatic ignition

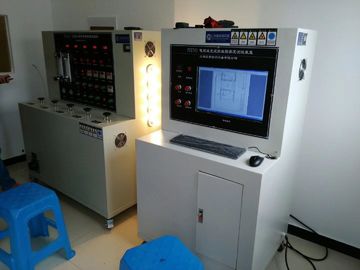

(6) Temperature controller: consists of two temperature monitoring sections,

Temperature range: 0~1000°C can be set arbitrarily.

4. Line load:

(1) Test transformer: 3000VA three (2) Test voltage: AC1000V

(3) Test current: 3A



Wire Flame Test Chamber For Electric Cables Under Fire Conditions Circuit Integrity 0



What are the different types of cabling?
Cables are mainly used to carry electrical and telecommunications signals. There are various types of cables, including twisted pair cable, coaxial cable, multi conductor cable and fiber optic cable. A twisted pair cable has two cables twisted around each other and is mainly used to carrying signals.
