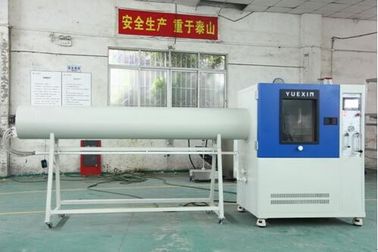

IPX56 Strong Water Spray Environmental Test Chamber Diameter 600mm Customizable

IPX56 Strong Water Spray Environmental Test Chamber Diameter 600mm Customizable

    • IPX56 Strong Water Spray Environmental Test Chamber Diameter 600mm Customizable
    • IPX56 Strong Water Spray Environmental Test Chamber Diameter 600mm Customizable
  • IPX56 Strong Water Spray Environmental Test Chamber Diameter 600mm Customizable

    Product Details:

    Place of Origin: CN
    Brand Name: SKYLINE
    Certification: CE
    Model Number: SL-IP56X

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 unit
    Packaging Details: Plywood case
    Delivery Time: 10 working days
    Payment Terms: T/T, Western Union, MoneyGram
    Supply Ability: 10 pcs/ month
    Contact Now
    Detailed Product Description
    Sample Turntable Size: Diameter 600mm (customizable) Nozzle Angle: 0°、30°、60°、90°(Vertical Direction)
    Nozzle Distance: 100-200mm(Can Be Manually Adjusted) IPX5 Water Spray: 12.5±0.625(L/min)
    IPX6 Water Spray: 100±5(L/min) Test Time: 0-9999S(Can Be Set)

    IPX56 Strong Water Spray Test Chamber—Technical Information



    Equipment Overview



    Application Background: The destruction of products and materials by nature's water (rainwater, seawater, river water, etc.) causes unpredictable economic losses every year. The damages caused mainly include corrosion, discoloration, deformation, strength reduction, swelling, mildew, etc. In particular, electrical products can easily cause fire due to the short circuit caused by rain. Therefore, conducting a protective shell water test for a specific product or material is an essential procedure.

    General application areas: Outdoor lighting, home appliances, auto parts and other electronic electrical products.

    Equipment function: The main function of this equipment is to use for electrical and electronic products, lamps, electric cabinets, electrical components, automobiles, motorcycles, and their parts and components. carry out testing. After the test, the quality of the product can be judged through the verification to meet the requirements, so that the product can be used in design, improvement, verification and factory inspection.





    Technical parameters Structural parameters
    External dimensions of equipment About 4000* deep 1180*high 1850mm (including aqueduct length 2450mm)
    Inner box size Long 1000* Depth 1000 * High 1000mm
    Water tank capacity About 100L, length 500× width 450× height 450mm
    Sample Turntable Size Diameter 600mm (customizable)
    IPX5,6K spray aperture Diameter 6.3mm
    IPX6 Water spray aperture Diameter 12.5mm
    Number of vents Four

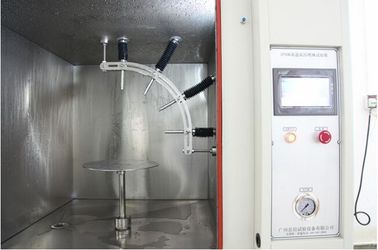

    Nozzle angle 0°,30°,60°,90°(Vertical direction)
    Nozzle distance 100-200mm(Can be manually adjusted)
    Turntable lifting method Phone adjustment
    Function parameter
    IPX5 Water spray 12.5±0.625(L/min)
    IPX6 Water spray 100±5(L/min)
    IPX6K Water spray 75L±0.375(L/min)
    IPX9K Water spray 14~16L/min
    IPX9KWater spray temperature Normal temperature(25℃);80±5℃(Deviation temperature can be agreed)
    IPX9KWater Spray Pressure 8000~10000 Kpa
    Turntable weight 50kg
    Turntable rotation speed 4~10 r/min (Precision adjustable)
    Flow control method Set by standard (flow sensor)
    IPX56KWater spray Distance 2.8 Meters(The distance of the nozzle from the center of the turntable)
    Gun fixing method Mechanical fixing (can manually adjust the angle of the gun)
    Turntable maximum weight 50KG
    Turntable lifting range 300-500mm(Manual adjustment)
    Water supply method Circulating water supply
    Test time 0-9999S(Can be set)
    Electrical parameters
    Control system (Touch type) 7-inch touch screen + PLC
    Equipment Power 380V
    Test sample Power 220V
    Equipment Power 15.0KW
    Security protection function Leakage protection, water shortage protection, short circuit protection



     Use of the site

    Smooth ground, unobstructed drainage, waterproof treatment of floor and wall, set floor drain or drain

    Ground weight capacity not less than 200kg/m2

    Site ventilation

    No strong vibration around the equipment

    No strong electromagnetic field around the device

    No flammable, explosive, corrosive substances and dust around the equipment

    Appropriate use and maintenance space around the equipment:

    Equipment rear, left and right, top: 800mm

    Equipment front side: 1200mm

     Map of site Size planning

    IPX56 Strong Water Spray Environmental Test Chamber Diameter 600mm Customizable



    Outer size of equipment: length 3500* deep 980*high 1750 mm

    Room Size Requirements: Length 5400*Deep 3450*Height 2100mm

    A: ≥ 900mm; B: ≥ 1500mm;

    C: ≥1000mm; D: ≥800mm;

     Environmental conditions

    Temperature: 5°C~35°C

    Relative humidity: ≤85%

    Pressure: 86kPa~106kPa

    Power supply conditions
    Voltage, frequency AC380V±10% ;50Hz±10% ;Three-phase four wire + protection ground
    Installed power 15.0kW
    Protective Ground ground resistance Grounding resistance of protective earth is less than 4Ω
    Power switch

    1. The user is required to configure a leakage protection air switch of the corresponding capacity for the device at the installation site, and the switch must be used independently for this device.

    2.Prohibit the use of knife switch or power outlet

    3. Leakage protection air switch from the device does not exceed 2 meters position

    Water condition

    1. The user is required to configure the water source for the equipment at the installation site, the water pressure is not lower than 0.2Mpa, and 4 faucets are installed.

    2.The faucet is not more than 2 meters away from the equipment



    IPX56 Strong Water Spray Environmental Test Chamber Diameter 600mm Customizable
