Stainless Steel Electronic Testing Equipment Multi-segment Spring Hammer Impactor

Stainless Steel Electronic Testing Equipment Multi-segment Spring Hammer Impactor

    • Stainless Steel Electronic Testing Equipment Multi-segment Spring Hammer Impactor
    • Stainless Steel Electronic Testing Equipment Multi-segment Spring Hammer Impactor
    • Stainless Steel Electronic Testing Equipment Multi-segment Spring Hammer Impactor
  • Stainless Steel Electronic Testing Equipment Multi-segment Spring Hammer Impactor

    Product Details:

    Place of Origin: China
    Brand Name: SKYLINE
    Certification: Calibration Certificate
    Model Number: SL-SE03

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 unit
    Price: Negoitable
    Packaging Details: plywood case
    Delivery Time: 5 working days
    Payment Terms: Western Union, MoneyGram, T/T
    Supply Ability: 1 pcs/ month
    Contact Now
    Detailed Product Description
    SKYLINE: Multi-segment Spring Hammer Impactor Standards: GB/T2423 (IEC60068-2-75)
    Weight: Single-file 1250g, Six-gear 2500g Length: 211mm
    Hammer Radius: 10mm OD: 50mm

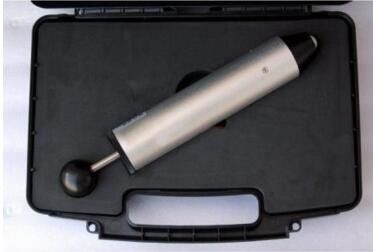

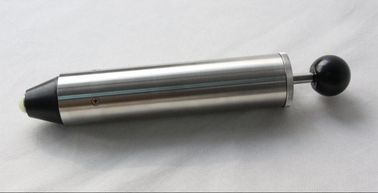

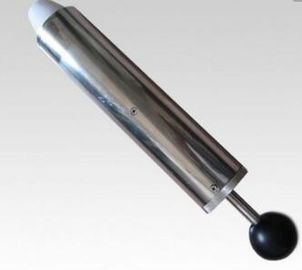

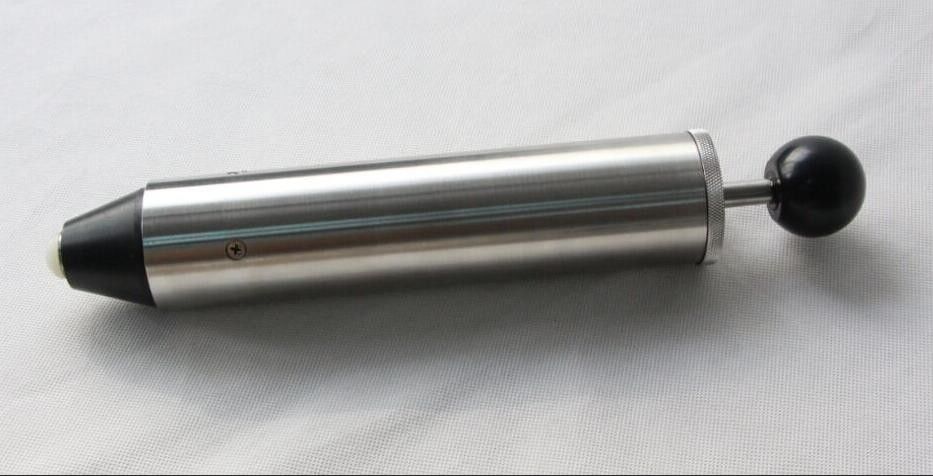

    SL-SE03 Multi-segment Spring Hammer Impactor



    Product overview

    The spring impactor is designed and manufactured according to the GB/T2423 (IEC60068-2-75) standard, and is used for testing the impact resistance of electrical and electronic products, and is the test apparatus necessary for testing the safety performance of electric product casing under mechanical force. It is applicable to household and similar electrical appliances, electronic products, lamps, electrical accessories shell, joystick, handle, knob, LED, signal lights and lampshades, such as mechanical strength test,

    To ensure that the tested product can withstand reckless operation and other accidents that may occur,Electrical products can be safe and reliable operation, will not cause harm to people.



    Technical parameter

     Length  211mm
     Weight  Single-file 1250g, six-gear 2500g
     OD  50mm
     Hammer Weight  60g
     Hammerhead Radius  10mm
     Impact Assembly  Operation handle and Hammerhead, Hammerhead made of white polyimide
     Impact release force  less than 10N


    Stainless Steel Electronic Testing Equipment Multi-segment Spring Hammer Impactor
