Stainless Steel 100 Degree Baby Stroller Turn Over Table Conforms with EN1888 Standard

Stainless Steel 100 Degree Baby Stroller Turn Over Table Conforms with EN1888 Standard

    • Stainless Steel 100 Degree Baby Stroller Turn Over Table Conforms with EN1888 Standard
    • Stainless Steel 100 Degree Baby Stroller Turn Over Table Conforms with EN1888 Standard
    • Stainless Steel 100 Degree Baby Stroller Turn Over Table Conforms with EN1888 Standard
  • Stainless Steel 100 Degree Baby Stroller Turn Over Table Conforms with EN1888 Standard

    Product Details:

    Place of Origin: CN
    Brand Name: SKYLINE
    Certification: Calibration Certificate
    Model Number: SL-BST013

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 UNIT
    Price: Negoitable
    Packaging Details: plywood case
    Delivery Time: 20 work days
    Payment Terms: L/C, T/T, D/P, Western Union, MoneyGram
    Supply Ability: 2 unit / month
    Contact Now
    Detailed Product Description
    SKYLINE: Baby Stroller Test Machine Standard: EN 1888
    Adjustable Angle: ±180 0 Angle Accuracy: 0.50
    Bench Size: 1500mm X 1500 Mm Bench Load: > 100 Kg
    Time Frequency: 0 – 10 Times / Min Test Duration: Adjustable

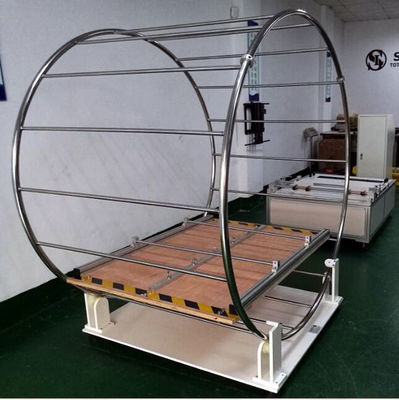

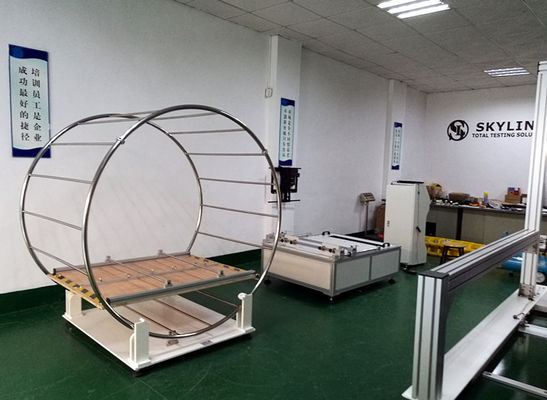

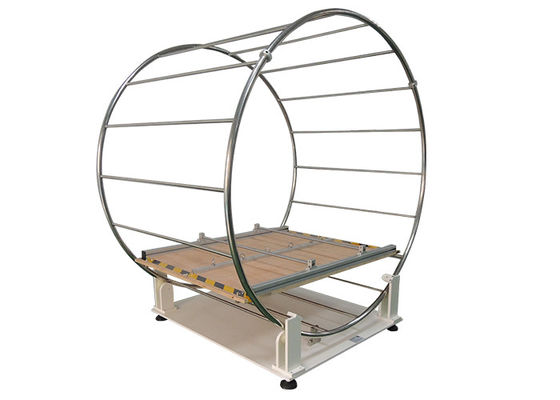

    100 Degree Baby Stroller Turn Over Table Conforms with EN1888 Standard​



    Applications

    100 degree Baby Stroller Turn Over Test Table Testing purposes: the dynamic, the infant carrier or seat fixed on the frame of the device must not break down, loose or may not have any damage in the test or test.



    Test status

    Basket or seat mounted on the frame. Operation basket or seat fixed on the frame 200 fixtures. Load block A on the basket at the bottom of the class 0 car seat, or the B load block on the seat inside or F load block on the 0 + class car seat and fasten it to the center. If the car bed design can carry more than one child using multiple test load placed on each one in each child take a regional. Wheel or axle wagon is fixed in a rigid platform, this platform around the axis parallel to the ground. Slowly accompanied by the test load car clockwise and counterclockwise rotation of 100 degrees to enable the fixtures to test load transferred to the frame.



    Specifications

     Standard  EN 1888/2012
     Adjustable angle  ±180 0
     Angle accuracy  0.50
     Time frequency  0 – 10 times / min
     Bench size  1500mm x 1500 mm
     Test duration  adjustable
     Controller  PLC program controller
     Bench load  > 100 Kg
