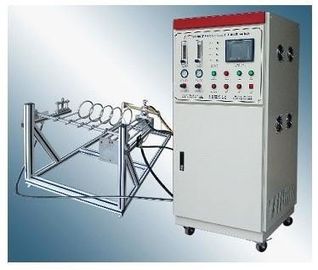

IEC60331-11 Wire & Cable Resistance To Fire Mechanical Shock Tester / Flammability Test Chamber

IEC60331-11 Wire & Cable Resistance To Fire Mechanical Shock Tester / Flammability Test Chamber

IEC60331-11 Wire & Cable Resistance To Fire Mechanical Shock Tester / Flammability Test Chamber

Product Details:

Place of Origin: China
Brand Name: SKYLINE
Certification: CE
Model Number: SL-7606Z

Payment & Shipping Terms:

Minimum Order Quantity: 1 unit
Price: negotiated
Packaging Details: plywood case
Delivery Time: 10 work days
Payment Terms: T/T, L/C, Western Union, MoneyGram
Supply Ability: 1 unit/ month
Contact Now
Detailed Product Description
Standards: IEC60331-11, IEC60331-21, IEC 60331-1etc. Size: W25*D25* L1000mm
Shock Speed: 30±2s/T Shock Bar Length: 600mm

Wire & Cable Resistance To Fire Mechanical Shock Tester / Flammability Test Chamber


Application
Used for testing wires & cables with the rated voltage through the different refractory level, detect the fire resistance of the insulation, check insulation whether breakdown and circuit’s integrality.

Standards
According to IEC60331-11, IEC60331-21, IEC 60331-1, IEC 60331-2, EN50200, EN50362, BS6387: 1994, BS7846, BS8431-1, BS8434-2, BS8491 etc.

Main parameters
 Shock testing wall  Material of resistance to fire and hot composition board and the size is L900*W300*D9mm,weight:about 10±2kg including frame
 Metal frame  2 stainless steel tube, one for up and down, size: W25*D25* L1000mm
 Testing power  output voltage continuously adjustable during AC0-100V,current: AC0.01-0.70A, four circuits independent continuously adjustable
 Heat withstand pip  φ3.0*L300mm, thermocouple fixed onto the end of heat withstand pip to test temperature
 Shock speed  30±2s/T , shock at the level of 60 °
 Timer  0.01~99.99S/M/H setting continuously
 Ribbon burner  nozzle length: 500mm;width: 15mm, contain the Venturi mixer
 Testing temperature  650~950℃
 Burning gas  propane or other gas
 Specimen size  Length about 400mm
 Temperature sensor  ø 2.0 mm Platiniridium temperature sensor , 8~10mm from the bottom of the worktable
 Shock bar  ø25mm, cylindrical, length: 600mm

IEC60331-11 Wire & Cable Resistance To Fire Mechanical Shock Tester / Flammability Test Chamber
