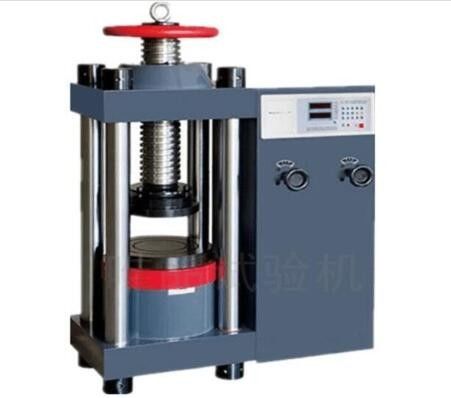

Lab Testing Equipment Air Brick Compression Tester , Concrete Pressure Testing Machine

Lab Testing Equipment Air Brick Compression Tester , Concrete Pressure Testing Machine

    • Lab Testing Equipment Air Brick Compression Tester , Concrete Pressure Testing Machine
    • Lab Testing Equipment Air Brick Compression Tester , Concrete Pressure Testing Machine
    • Lab Testing Equipment Air Brick Compression Tester , Concrete Pressure Testing Machine
  • Lab Testing Equipment Air Brick Compression Tester , Concrete Pressure Testing Machine

    Product Details:

    Place of Origin: China
    Brand Name: SKYLINE
    Certification: calibration certificate
    Model Number: SL-T2000

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 unit
    Price: Negoitable
    Packaging Details: Plywood case
    Delivery Time: 15 working days
    Payment Terms: Western Union, T/T, MoneyGram, L/C
    Supply Ability: 2 pcs/ month
    Contact Now
    Detailed Product Description
    SKYLINE: Concrete Pressure Testing Machine Maximum Test Force: 2000KN
    Test Force Measurement Range: 10%-100% Piston Stroke: 80mm
    Motor Power: 0.75KW Total Weight: 800KG

    Air Brick Compression Testing Equipment , Concrete Pressure Testing Machine



    Description

    This machine adopts the structure of the host and the hydraulic system, which is compact and exquisite. Using hydraulic loading and electronic measuring force, it has the function of charging number rate, peak holding and so on, and is equipped with a micro printer.



    Hydraulic system

    The hydraulic oil in the tank goes through the motor to drive the high pressure pump into the oil road, and flows back to the oil valve and enters the oil cylinder. The measuring instrument collects the analysis data through the sensor and shows the time force value. The tester can control the flow rate by sending the oil valve to realize the speed of the test force.



    Dynamometric System

    1.Manual adjustment and return to oil valve, simple and flexible operation.

    2.Maximum load peak retention function.

    3.Dynamic display function with loading rate.

    4.Random test report with date of tast, number, failure load, compressive strength, etc.



    Safety protection device:When the test force is more than 3% of the maximum test force, the overload protection and the pump motor stop.



    Main performance technical indicators

     Maximum test force (kN)  2000
     Test force measurement range  10%-100%
     The relative error of the test force indication value  Less than 1% of the indication value
     Upper and lower plate spacing (mm)  300
     Piston stroke (mm)  80
     Column spacing (mm)  260
     Pressure plate size (mm)  up to 225, below 300
     Mainframe size (mm)  850*550*1450
     Motor power (kW)  0.75
     Total weight (kg)  800



    Factory standard configuration list

     Test machine  1 units (including motor, oil pump, return oil valve)
     Dynamometer  1, on the host, containing a micro printer
     Pressure sensor  1, avionics test
     Up and down platen  1 sets
     Instruction certificate / packing list  1 sets



    Lab Testing Equipment Air Brick Compression Tester , Concrete Pressure Testing Machine
