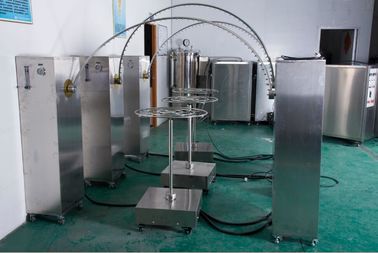

IEC60335 Environmental Test Chamber , Waterproof Oscillating Spray Tester

IEC60335 Environmental Test Chamber , Waterproof Oscillating Spray Tester

    • IEC60335 Environmental Test Chamber , Waterproof Oscillating Spray Tester
    • IEC60335 Environmental Test Chamber , Waterproof Oscillating Spray Tester
    • IEC60335 Environmental Test Chamber , Waterproof Oscillating Spray Tester
  • IEC60335 Environmental Test Chamber , Waterproof Oscillating Spray Tester

    Product Details:

    Place of Origin: China
    Brand Name: SKYLINE
    Certification: CE
    Model Number: SL-IPX3X4A

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 unit
    Price: Negoitable
    Packaging Details: plywood case
    Delivery Time: 15 working days
    Payment Terms: Western Union, T/T, MoneyGram
    Supply Ability: 10 pcs/ month
    Contact Now
    Detailed Product Description
    SKYLINE: IPX3 IPX4 Water Spray Tester Material: Stainless Steel
    Endulum Angle: IPX3: 120°(±60°); IPX4: 360°(±180°) Swing Pipe Speed: IPX3: 4s/time (2x120°) IP4X: 12s/time (2x180°)
    Water Discharge: 1-10L/min, Adjustable Swivel Table Diameter: 700mm

    IEC60335 Environmental Test Chamber , Waterproof Oscillating Spray Tester



    Application

    The rain test system is strictly designed according to IEC60529. It’s applied to the Electrical equipment of the waterproof test of IPX3 and IPX4.



    Technology Parameter

     Power Supply  Single phase: AC220V, 50Hz
     Swing Pipe diameter  19mm, thickness 2mm
     Swing Pipe radius  R800 (304 stainless steel)
     Orifice diameter  0.4mm
     Orifice angle

     IPX3: 120°;

     IP4X: 180°

     Pendulum Angle

     IPX3: 120°(±60°);

     IPX4: 360°(±180°)

     Swing Pipe Speed

     IPX3: 4s/time (2x120°)

     IP4X: 12s/time (2x180°)

     Water discharge  1-10L/min, adjustable
     Test time  0-999mins, can preset
     Swivel table diameter  700mm
     Swivel table speed  (1-5) rpm
     Tiltable Angle  15°
     Swivel table rotation angle  900°,continuous rotation
     Pressure Gage  0~0.25MPa



    The tubes oscillate to almost 180 ° either side of vertical. The degree of oscillation can be set on the touch screen controller or one of the three pre-set values, 90 ° , 120 ° , or almost 180 ° , can be selected.



    A specimen support is also included. It is supplied with two specimen bases - one perforated for IPX4 and one non-perforated for IPX3. The support is made from stainless steel and mounted on wheels for easy maneuverability and adjustment. It offers height adjustments that range from 855mm to 1300mm. The oscillating tubes are manufactured with orifice radii of 200 mm to 1600 mm with a progressive ratio of 200 mm.



    Features

    1.Material: stainless steel

    2.Accurate flow adjustable

    3.Steady swing

    4.The pedndulum pile can do 1600mm

    5.Professional rain room is required



    IEC60335 Environmental Test Chamber , Waterproof Oscillating Spray Tester
