Home ProductsFootwear Testing Equipment

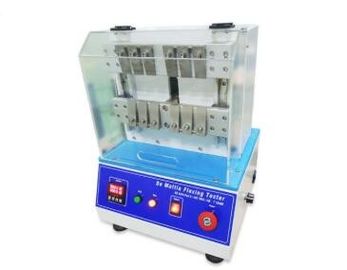

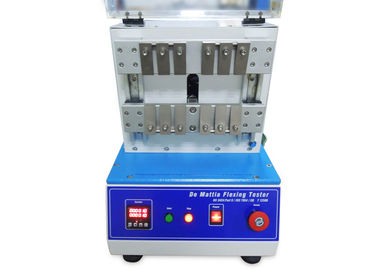

CE Footwear Testing Equipment , ASTM D7854 Coated Fabric De Mattia Flex Tester

CE Footwear Testing Equipment , ASTM D7854 Coated Fabric De Mattia Flex Tester

    • CE Footwear Testing Equipment , ASTM D7854 Coated Fabric De Mattia Flex Tester
    • CE Footwear Testing Equipment , ASTM D7854 Coated Fabric De Mattia Flex Tester
  • CE Footwear Testing Equipment , ASTM D7854 Coated Fabric De Mattia Flex Tester

    Product Details:

    Place of Origin: CN
    Brand Name: SKYLINE
    Certification: CE
    Model Number: SL-L57

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 unit
    Price: negoitable
    Packaging Details: plywood case
    Delivery Time: 15 work days
    Payment Terms: Western Union, MoneyGram, T/T
    Contact Now
    Detailed Product Description
    SKYLINE: De Mattia Flex Tester Standard: BS 3424 P9,ISO 7854
    Dimension: 36x35x50cm Test Speed: 5.0Hz±0.2Hz(300±12r/min)
    Fixture Width: 20mm Test Track: Vertical Reciprocating Motion

    CE Footwear Testing Equipment , ASTM D7854 Coated Fabric De Mattia Flex Tester


    Applications

    De Mattia Flexing Tester is used for the assessment of the resistance of coated fabrics to damage by repeated flexing under De Mattia method.

    The tester is suitable for coated fabric against repeated flexing damage performance, to provide a reference for improving the fabric.



    Standards

    BS 3424 P9, ISO 7854



    Principle

    Fold a strip of coated fabric two times with their long edges stacked to form a 125 mm × 12.5 mm strip. Install the folded strip between a pair of flat clamps, one of the clamps can be reciprocated, causing the folded specimen to bend outward five times per second. This high-speed folding of the sample continues until the predetermined number of cycles or sample is significantly damaged.



    Parameters

     Item

     Specification

     Fixtures

     6 Group

     Test Speed

     5.0Hz±0.2Hz(300±12r/min)

     Fixture Width

     20mm

     Test track

     Vertical reciprocating motion

     Test stroke

     57mm

     Fixture minimum space

     13mm±0.5mm

     Fixture max space

     70mm±1mm

     Specimen size

     37.5mmx125mm

     Specimen quantity

     6 pcs, wrap and horizontal each 3 pcs

     Dimension(WxDxH)

     36x35x50cm

     Weight

     ≈45Kg

     Power supply

     1∮ AC 220V 50Hz 3A



     CE Footwear Testing Equipment , ASTM D7854 Coated Fabric De Mattia Flex Tester
