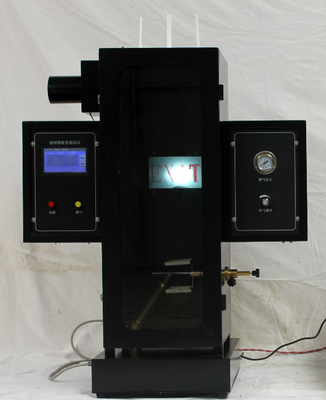

DIN 4102 Building Material Flammability Testing Equipment / Smoke Density Fire Tester

DIN 4102 Building Material Flammability Testing Equipment / Smoke Density Fire Tester

  • DIN 4102 Building Material Flammability Testing Equipment / Smoke Density Fire Tester
  • DIN 4102 Building Material Flammability Testing Equipment / Smoke Density Fire Tester
  • DIN 4102 Building Material Flammability Testing Equipment / Smoke Density Fire Tester
DIN 4102 Building Material Flammability Testing Equipment / Smoke Density Fire Tester
Product Details:
Place of Origin: China
Brand Name: SKYLINE
Certification: CE
Model Number: SL-FL083
Payment & Shipping Terms:
Minimum Order Quantity: 1 unit
Price: negotiated
Packaging Details: plywood case,
Delivery Time: 10 work days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 1 unit/ month
Contact Now
Detailed Product Description
SKYLINE: Smoke Density Flammability Tester Standards: ASTM D 2843,DIN 4102
Application: Smoke Density Test Gas: 95% Propane Gas
Controller: Touch Screen Dimension: 740 * 500 * 900 (mm)
Accuracy: ± 3% Smoke Density Measurement Range: 0 ~ 100%
High Light:

horizontal flammability tester

,

vertical flammability chamber

DIN 4102 Building Material Flammability Testing Equipment / Smoke Density Fire Tester



Application

Suitable used for measuring the somke-producing characteristic of building material under controlled condition of combustion or decomposition, and also can be used for other plastics.


Standards

ASTM D 2843,DIN 4102



Specification

1. Maximum smoke density (MSD) and smoke density (SDR) for the specimen: 0-100% continuously measurable and automatically calculated;
2. With the standard optical correction error of not more than 3%; each device is equipped with three standard filters, proof of light source data, representative
3. Bunsen lamp working pressure (210 ± 5) KPa;
4. Bunsen lamp on the sample to impose a flame 4min;
5. Automatic timing, automatic ignition, automatic smoke; luminous flux can be phased linear calibration test data
more acurrate;
6. Touch Screen:
a. Size: 5 inch effective display size 11cm wide 6.28cm;
b. Resolution: 800 * 480
c. communication interface RS232, 3.3V CMOS or TTL, serial port
d. storage capacity: 1G
e. Using pure hardware FPGA driver display, "zero" start time, power can run
f. using M3 + FPGA architecture, M3 is responsible for instruction resolution, FPGA focus TFT display, speed and reliability are leading the same kind of program
g. The main controller uses low-power processor, automatically enter the energy-saving mode
7. Gas source: 95% propane gas, or the same purity of the gas (customer-owned);
8. long * wide * high 740 * 500 * high 900 (mm)



 Burning lamp  for the students light, length 260mm, nozzle diameter 0.13mm, 45 ° angle with the smoke box;
 Photoelectric system  light source for the lamp, power 15W, operating voltage 6V;
 Exhaust system  the machine is equipped with a strong fan, after the test, the exhaust can be discharged outdoors;
 Smoke density measurement range  0 ~ 100%;
 Smoke density measurement accuracy  ± 3%;
 Receiver  for the silicon photovoltaic cells, light transmission rate of 0% for the passage of light, light transmission rate of 100% light without cover completely through;
 Main burner working pressure  276KPa (adjustable);

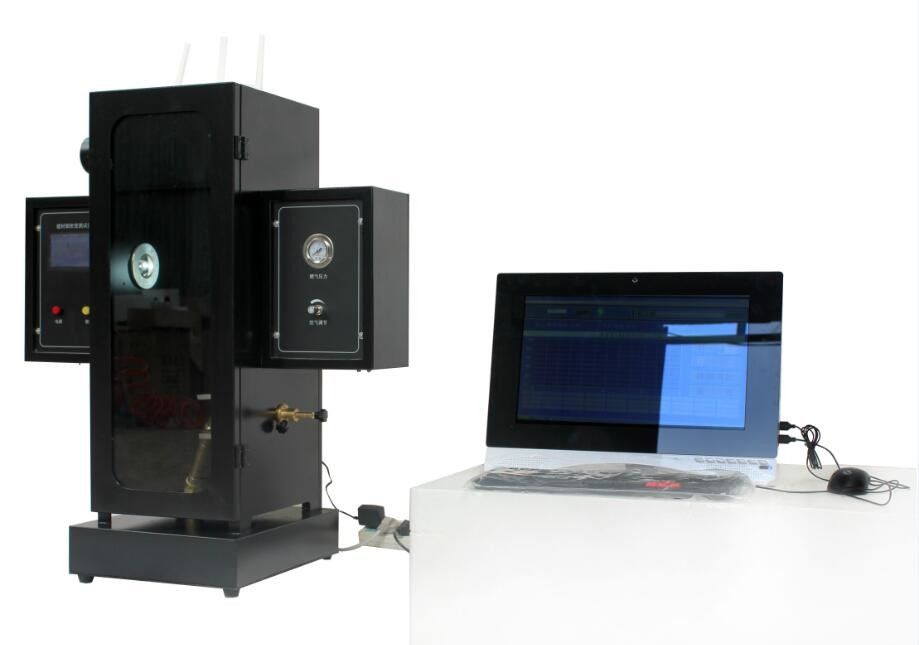

DIN 4102 Building Material Flammability Testing Equipment / Smoke Density Fire Tester 0

What is smoke density test?

This test measures the amount of smoke given off by a material that is burning or smoldering. The material is tested when it begins to smolder and again when a flame source is added. The smoke density is between 0 (no smoke generated) and 800.
