|SKYLINE:||Touch Screen Ring Crush Strength Tester||Capacity:||60 ~ 5000 N|
|Accuracy:||Value For + / - 1%||Linking Piece:||￠100 Mm|
|Piston Stroke:||500-1500 Mm|

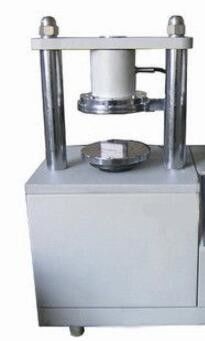

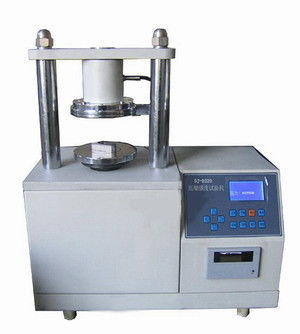

Tensile Strength Tester Digital Ring Crush Strength Tester
Quality testing can be performed on a variety of paper ring crush, horizontal pressure, side pressure, adhesive and general compressive 5 kinds of tests.
This machine with high precision sensor, the software analysis in digital show the strength of specimen. Specimens will be placed in the film, the specimens with clamp, and then pressure evenly, make sample free bulging with film, until broken sample, applying a maximum hydraulic specimens pop strength values. The ring compression testing machine is designed for mechanical and electrical integration structure, use of modern mechanical design concept and microcomputer processing techniques for rational design meticulously. Instrument adopts the press table stationary and high accuracy of measurement. Standard of instrument has contained in the various parameters testing, conversion, adjust, data printing, etc. Has powerful data processing function, can direct the statistical results of all information, convenient operation, easy adjustment, stable performance.
Conform to the standard
CNS2956, JISP8126, TAPPIT472, GB/T2679.6-1996, GB/T6548-1998
A pay of vertical pressure clamp
Parallel sampler, Ring crushes sampler, Extrusion fixture, Flat fixture, Agglutination intensity of fixture.
|Capacity||60 ~ 5000 n|
|Accuracy||value for + / - 1%|
|Linking piece||￠100 mm|
|Pressure plate spacing||75 mm|
|The test speed||12.7 mm/min|
|Geometric error||flatness < 0.05 mm|
|Parallelism error is less than||1/2000 x B (B is circular clamp diameter)|
|Size||500 * 270 * 270 mm (W * D * H)|
|Power supply||1 30, AC220V, 1.5 A|
