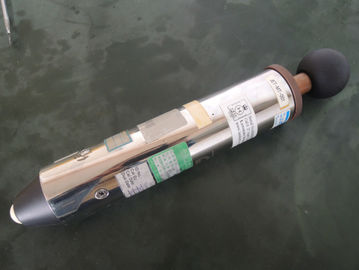

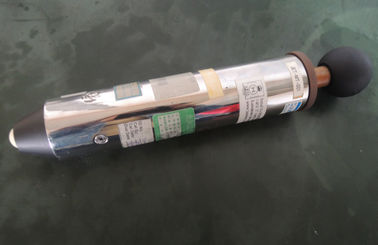

Stainless Steel Electronic Testing Equipment 0.7 J Single Energy Spring Impact Hammer

Stainless Steel Electronic Testing Equipment 0.7 J Single Energy Spring Impact Hammer

  • Stainless Steel Electronic Testing Equipment 0.7 J Single Energy Spring Impact Hammer
  • Stainless Steel Electronic Testing Equipment 0.7 J Single Energy Spring Impact Hammer
  • Stainless Steel Electronic Testing Equipment 0.7 J Single Energy Spring Impact Hammer
Stainless Steel Electronic Testing Equipment 0.7 J Single Energy Spring Impact Hammer
Product Details:
Place of Origin: China
Brand Name: SKYLINE
Certification: Calibration Certificate
Model Number: SL-SE02
Payment & Shipping Terms:
Minimum Order Quantity: 1 unit
Price: Negoitable
Packaging Details: plywood case
Delivery Time: 5 working days
Payment Terms: Western Union, MoneyGram, T/T
Supply Ability: 1 pcs/ month
Contact Now
Detailed Product Description
SKYLINE: Single Spring Impact Test Hammer Standards: IEC60068-2-75 IEC884 And UL1244
Weight: 1250g Length: 211mm
Hammer Radius: 10mm OD: 50mm
High Light:

sharp edge tester

,

electronic testing machine

Stainless Steel Electronic Testing Equipment 0.7 J Single Energy Spring Impact Test Hammer



Introductions

This spring impact hammer is mainly used to test household and similar electrical appliances shell, lever, handle, knobs, lights and other shell to withstand mechanical shocks. The impact tester made of stainless steel or alloy.



Standards

It is strictly designed according to IEC60068-2-75, but not limited to these standards.



Applications

This hammer is mainly used to test household and similar electrical appliances shell, lever, handle, knobs, lights and other shell to withstand mechanical shocks. The impact tester made of stainless steel or alloy.



After applying the impact with the hammer, the products is examined with accessibility probes to determine access to shock,energy,and injury hazards. Built in exact accordance to IEC/EN/UL/CSA and other standards.



 Type

 Impact Energy(J)
 Tolerance Mistake
 Spring Impact Energy
 0.14
 0.014
 Spring Impact Energy
 0.20
 0.02
 Spring Impact Energy
 0.35
 0.03
 Spring Impact Energy
 0.50
 0.04
 Spring Impact Energy
 0.70
 0.05
 Spring Impact Energy
 1.00
 0.05
 Spring Impact Energy
 2.00
 0.10
 Universal Energy
 0.14
 1.00


Technical parameters

 length  211mm
 weight  1250g
 OD  50 mm
 Hammer Weight  60g
 Hammer radius  10mm
 Impact Components  including the hit ball handle the hammer,weight 250g, hammer head is made from white polyethylene imine first
 The release force of impact  <10N
