Printing Lab Testing Equipment 20℃ ~ 250℃ High Temperature Steaming Oven

Printing Lab Testing Equipment 20℃ ~ 250℃ High Temperature Steaming Oven

  • Printing Lab Testing Equipment 20℃ ~ 250℃ High Temperature Steaming Oven
  • Printing Lab Testing Equipment 20℃ ~ 250℃ High Temperature Steaming Oven
Printing Lab Testing Equipment 20℃ ~ 250℃ High Temperature Steaming Oven
Product Details:
Place of Origin: China
Brand Name: SKYLINE
Certification: CE, calibration certificate
Model Number: SL-E100
Payment & Shipping Terms:
Minimum Order Quantity: 1 unit
Price: Negoitable
Packaging Details: plywood case
Delivery Time: 15 working days
Payment Terms: Western Union, T/T, MoneyGram
Supply Ability: 2 pcs/ month
Contact Now
Detailed Product Description
SKYLINE: High Temperature Steaming Oven Test Cloth Size: 300 Mm × 400 Mm (effective Size 250 Mm × 350 Mm)
Operating Temperature: 20 ℃ ~ 250 ℃. Total Power: 6.2KW.
Weight: 180kg Power: Three-phase AC380V 50Hz
High Light:

physical testing equipment

,

brake testing equipment

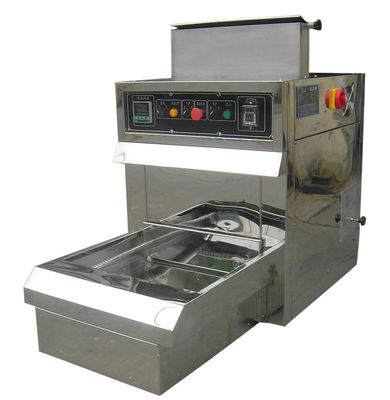

Printing Lab Testing Equipment 20℃~250℃ High Temperature Steaming Oven



Machine characteristics
1. This machine looks and designs similar to M-III, in addition to drying, stereotypes, baking, hot melt fixing (temperature 20 ℃ ~ 250 ℃) function, and steam steaming effect.
2. Apply to the dyeing and finishing laboratory for steam culture, baking, shaping drying and other aspects of the test, in order to get the correct resin processing formula, test dyeing and finishing color change and verify the results of pharmaceutical test.
3. The printing process of the printing factory is carried out by the temperature, the humidity and the time in the steam box, which can be applied to the following works:
① Drying, shaping and hot melt dyeing, electrical heating temperature range 20 ℃ ~ 250 ℃
② Saturated steam baking, steam processing, steam heating temperature range of 102 ℃ ± 2 ℃
③ High temperature steam processing, electric and steam and use, the temperature range of 100 ℃ -250 ℃


Technical parameters

 Test cloth size  300 mm × 400 mm (effective size 250 mm × 350 mm)
 Steady drying, baking hot air circulation control  Operating temperature 20 ℃ ~ 250 ℃
  Steam  steam directly into the steam steam
 Insulation control  1 ~ 99M can be preset, after the automatic exit, and the end of the bell
 Fan  stainless steel wind wheel, fan motor power 180 W
  Needle plate  two-way stretch needle plate rack
  Power  three-phase AC380V 50Hz
 Total power  6.2KW
 Overall dimensions: side  1320 mm × positive 660 mm × height 800 mm (the whole machine are high quality stainless steel SUS304)
 Weight  about 180KG

Printing Lab Testing Equipment 20℃ ~ 250℃ High Temperature Steaming Oven 0
