Movable Gantry Rollator Durability Testing Machine with Servo Actuator

Name: Movable Gantry Rollator Durability Testing Machine with Servo Actuator
Brand: SKYLINE INSTRUMENTS CO.,LTD
SKU: SL-T07
Price: 4,500.00 USD
Availability: InStock

Brand Name:	SKYLINE
Model Number:	SL-T07
MOQ:	1 unit
Payment Terms:	Western Union, T/T, MoneyGram
Supply Ability:	1 pcs/ month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

SKYLINE:

Mattress Durability Testing Machine

Rollator Length:

915±75mm

Rollator Horizontal Stroke:

1600mm Can Be Set

Rollator Vertical Stroke:

0-400mm

Max Dimension Of Specimen:

1800×2200mm

Cylinder Weight:

140 KG.

Packaging Details:

plywood case

Supply Ability:

1 pcs/ month

Highlight:

mattress testing equipment

spring testing equipment

Product Description

Movable Gantry Rollator Durability Mattress Testing Machine with Servo Actuator

Application of Mattress testing Machine

It is use to test the durability of all kinds of mattress.

This machine use high precision Servo linear electric cylinder to control the force, displacement, speed. One-step installation, mattress rollator test. When finish the test, the system will lift the roller to origin automatically.

Standard of Mattress testing Machine

ASTM F 1566 BSEN 1957

Key specification of Mattress testing Machine

Hexagonal roller	240 ± 10Lb (109 ± 4.5kg), length 36 ± 3in (915 ± 75mm)
Six-cylinder edge distance	17 ± 1in (430 ± 25mm)
ASTM 1566	Max. mattresses width Min. 70% of mattresses width or 38in (965mm) choose a smaller value between them;
Test speed	ASTM 1566: no more than 20 cycles / min
Measured disc	ASTM 1566: diameter 13.54 ± 0.2in (344 ± 5mm)
Mattress rollator size (WxDxH)	267cmx300cmx195cm
Weight (approx.)	about 2000kg
Power supply	three-phase four-wire AC 380V 6A

Techincal parameters of Mattress testing Machine

Roller	Woodiness,six sided roller
Roller length	915±75mm
Roller specification	Diameter of Roller (Flat to Flat )432±25mm
Roller weight	109±4.5KG
Roller horizontal stroke	1600mm can be set
Rollator vertical stroke	0-400mm
Rollator test frequency	16 cycles/ minute can be set
Testing times	0—999,999 times can be set
Max dimension of specimen	1800×2200mm

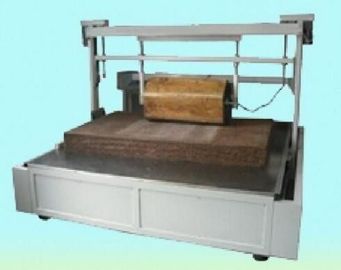

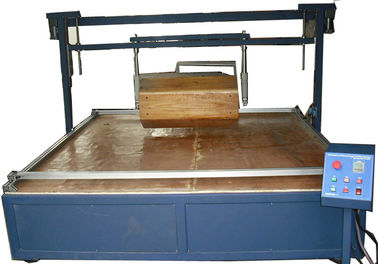

Movable Gantry Rollator Durability Testing Machine with Servo Actuator 0
