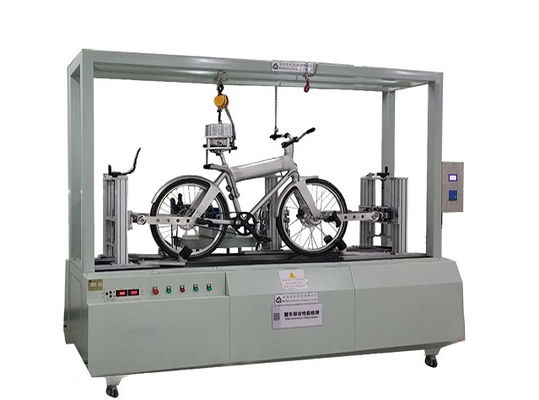

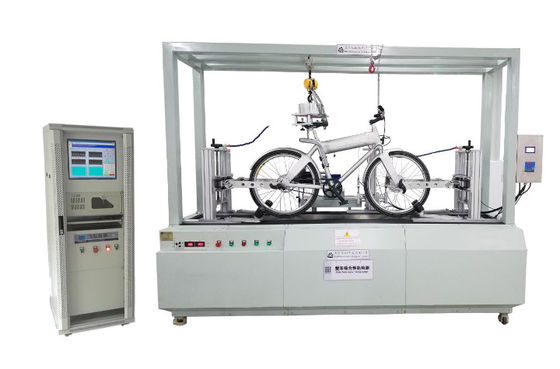

ISO4210 0-25km / Hr Adjustable Bicycle Comprehensive Performance Test Machine

ISO4210 0-25km / Hr Adjustable Bicycle Comprehensive Performance Test Machine

  • ISO4210 0-25km / Hr Adjustable Bicycle Comprehensive Performance Test Machine
  • ISO4210 0-25km / Hr Adjustable Bicycle Comprehensive Performance Test Machine
ISO4210 0-25km / Hr Adjustable Bicycle Comprehensive Performance Test Machine
Product Details:
Place of Origin: China
Brand Name: SKYLINE
Certification: CE
Payment & Shipping Terms:
Minimum Order Quantity: 1 unit
Packaging Details: plywood case
Delivery Time: 15 working days
Payment Terms: Western Union, MoneyGram, T/T
Supply Ability: 1 pcs/ month
Contact Now
Detailed Product Description
SKYLINE: Bicycle-Comprehensive-Performance-Test-Machine Carrying Load: ≦ 80kg
Speed: 0-25km / Hr Adjustable Machine Size: (L × W × H) 250 × 150 × 280cm
Bear The Wheel Diameter: 760mm Weight: 600kg
High Light:

abrasion testing equipment

,

physical testing equipment

Bicycle Comprehensive Performance Test Machine



Introduction

Attach a certain load to the car, fix it on the machine, start the machine, make the car run at a certain speed, and pass a certain obstacle. After a period of time, inspect the car knot for damage or separation.



Scope of application

This machine mainly simulates the actual situation of the use of electric bicycles. Place the finished vehicle tester on the platform, adjust the safety device according to the standard configuration and fixed weight, and set the relevant parameters on the computer before testing.



According to the standard

En15194, GB17761 ISO4210



Technical parameter

 Conveyor speed  1.4±0.1m/sec (5km/h3.6km/h) is adjustable
 Weight  according to the CNS impact block production method
 Carrying load  ≦ 80kg (using superimposed way)
 Power  AC dual-frequency drive (3HP)
 Speed  0-25km / hr adjustable
 The impact block  height 25mm width 50mm (can be customized according to requirements) 45 ° chamfer
 Detection  Using Korean charging sensor, it can detect bicycle damage and stop in the first time
 Machine size  (L × W × H) 250 × 150 × 280cm
 Weight  600kg
 Applicable models  city car, mountain bike, baby carriage, co-train
 Bear the wheel diameter  760mm (or specified)





Test items

1. Simulated human body weight test, loaded with weights, loading parts including handlebars, seat, five-way, rear, etc.

2. Simulated riding road condition test can be screen test obstacle test separately

3. Can measure the crank power of different speeds of bicycle

4. Brake test can automatically adjust the brake force test bicycle dry state and wet brake distance

5. Electric vehicle power test set cruising range test

6. The drum distance is adjustable for different models

7. Automatically generate test reports using computer control

8. Climbing performance test
