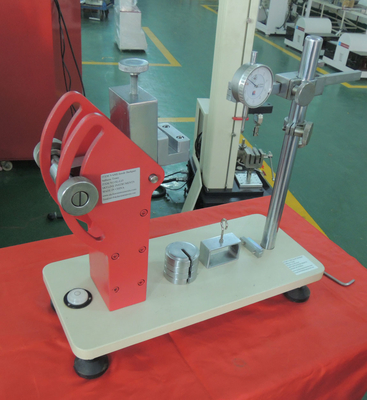

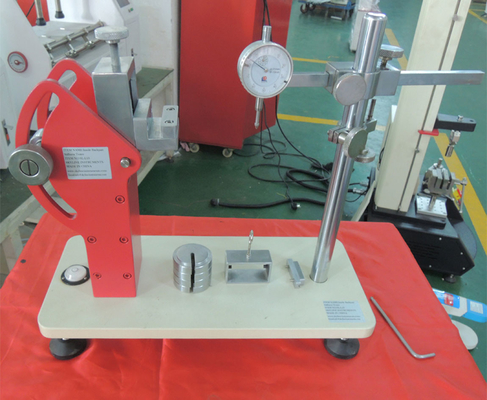

Footwear Testing Equipment Insole Back Part Stiffness Testing Machine

Footwear Testing Equipment Insole Back Part Stiffness Testing Machine

  • Footwear Testing Equipment  Insole Back Part Stiffness Testing Machine
  • Footwear Testing Equipment  Insole Back Part Stiffness Testing Machine
Footwear Testing Equipment  Insole Back Part Stiffness Testing Machine
Product Details:
Place of Origin: China
Brand Name: SKYLINE
Certification: CE
Model Number: SL-L13
Payment & Shipping Terms:
Minimum Order Quantity: 1 unit
Packaging Details: plywood case
Delivery Time: 15 working days
Payment Terms: Western Union, MoneyGram, T/T
Supply Ability: 1 pcs/ month
Contact Now
Detailed Product Description
SKYLINE: Leather Stiffness Tester Specimen Load: 10N 0.2N
Scale: 0.1 ~ 10mm Diameter Abrasive Wheel: 150 450L (mm)
Emery Cloth: 60 #, 425 473 1.5 (mm) Set Rotation: 84 Rotate (about 40M)
Standard: SATRA TM 58
High Light:

abrasion resistance tester

,

shoe wear tester

Footwear Testing Equipment Shoes Insole Backpart Stiffness Tester



Product introduction

The insole backpart stiffness tester is used to testing the stiffness in the longitudinal direction of steel shanks used for the reinforcement of the waist region of shoes.The shank is clamped at its heel end and bent as a cantilever beam by masses added to its forward end.

The amount of bending is measured and used to calculate the flexural rigidity of the shank.

Leather stiffness tester machine is used to measure the stiffness in the longitudinal direction of steel shanks used for the reinforcement of the waist region of shoes,the shank is clamped at its heel end and bent as a cantilever beam by masses added to its forward,then calculate the flexural rigidity of the shank.


Specification

 Rotation Angle of Lower Jaw Seat  30degree
 Length of Measuring Clip  60±0.02mm
 Depth of Clamp for Front End  12mm
 Dial Gauge  0~10mm(min graduation0.01mm )
 Dead Weight  200+/-1g×4
 Dimension(W×D×H)  37x17x35cm
 Weight  12kg
 Standards

 SATRA TM 58



SL-L13 Insole Backpart Stiffness Tester.pdf





Footwear Testing Equipment  Insole Back Part Stiffness Testing Machine 0
