|Place of Origin:||China|
|Minimum Order Quantity:||1 unit|
|Packaging Details:||plywood case|
|Delivery Time:||20 working days|
|Payment Terms:||T/T, Western Union, MoneyGram|
|Supply Ability:||1 unit / month|
|SKYLINE:||Dripping Test Apparatus||Standards:||NF P92-505，EU 95/28/EC|
horizontal flammability tester,
lab testing equipment

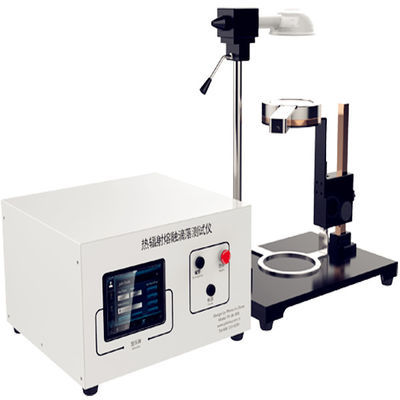

NF P92-505 Dripping Test Apparatus

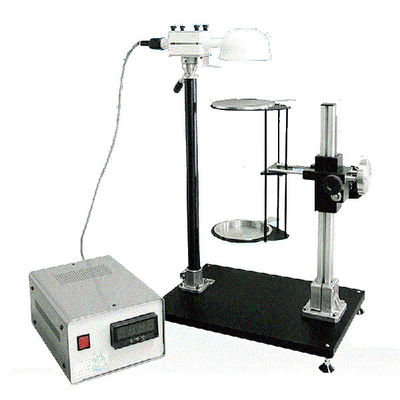

The dripping test apparatus comprises the following elements put together on a common base :
At the upper part of the first stand is placed the epiradiator-type heat radiation source of 500 W power rating, which radiant surface is made of a translucent vitreous fused silica disk of 100 mm diameter.
A movable handle device allows to slightly lift up the epiradiator support to rotate at 90° in the horizontal plane, in order to remove it from the test piece.
The second stand bears an adjustable in height assembly with at the upper part the test piece support and at the lower part the drop receptacle, these two parts being 300 mm apart.
The test piece support is made of a metal ring on which lies a plane circular grid in stainless steel wire.
The drop receptacle is composed of a small dish which flat bottom is entirely covered by cotton wool.
A guiding mark bound up with the epiradiator support and a graduated metal rule fixed to the pole of this second stand allow to adjust the distance between the radiant surface of the epiradiator and the upper face of the test piece.
