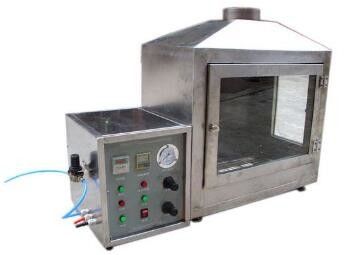

Building Material Flammability Tester Ignitability Testing Equipment

Building Material Flammability Tester Ignitability Testing Equipment

  • Building Material Flammability Tester  Ignitability Testing Equipment
  • Building Material Flammability Tester  Ignitability Testing Equipment
Building Material Flammability Tester  Ignitability Testing Equipment
Product Details:
Place of Origin: China
Brand Name: SKYLINE
Certification: CE
Model Number: SL-FL089
Payment & Shipping Terms:
Minimum Order Quantity: 1 unit
Price: negotiated
Packaging Details: plywood case,
Delivery Time: 10 work days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 1 unit/ month
Contact Now
Detailed Product Description
Building Material: Flammability Testing Equipment Ignitability Tester Standards: EN ISO 11925-2, DIN 4102
Application: Building Products Burner Angle: 45°
Materail: Stainless Steel Anemometer Accuracy: ±0.1m/s.
Observing Window: Two Big Viewing Windows On The Front And Right Side Timer Accuracy: ≤1s/h
High Light:

horizontal flammability tester

,

lab testing equipment

Building Material Flammability Testing Equipment Ignitability Test Single Flame Source



Description

Ignitability test, also called single-flame source test.Test apparatus corresponds to standard EN ISO 11925-2. Test results of the building structure can be classified according to standard 13501-1.

The dimensions of the test specimens shall be (250 ) mm long by (90 ) mm wide.

45°-tilted burner is advanced horizontally until the flame (length 20 mm) reaches the pre-set contact point with the test specimen. Tests may need to be conducted to either surface exposure or edge exposure, or both. The flame application time is 15 or 30 seconds as required by sponsor.

During the test following is recorded: whether ignition occurs; whether the flame tip reaches 150 mm above the flame application point, and the time at which this occurs; whether ignition of the filter paper occurs; observations of physical behavior of the test specimen.



Standards

 EN ISO 11925-2, DIN 4102



Specifications

 Power supply  AC220V±10%,50Hz
 Burner  diameter 0.17mm burner with regulator; four ¢4mm air suction inlet
 Gas source  >95% propane gas;(user should provide for themselves)
 Gas pressure  10kpa~50kpa
 Flue air velocity  0.7m/s only on condition of burner burning and draught hood open
 Time adjustment of continuous flame  0 ~ 99minutes99seconds
 Time adjustment of afterflame  0 ~ 99minutes99seconds
 Timer accuracy  ±0.1m/s
 Burner angle  45°
 Material  stainless steel
 Observing window two big viewing windows on the front and right side

 Anemometer accuracy

 ±0.1m/s



Whole set: control device, burning chamber,burner,magnetic valve,flame lighter, signal control line and specimen holder.

Equipped with a digital anemometer/thermometer and a stopwatch for simple but accurate measurement of the flow, temperature and time.
