10KN Sole Adhesion Tester / Shoe Testing Machine For Tear , Break Test

10KN Sole Adhesion Tester / Shoe Testing Machine For Tear , Break Test

  • 10KN Sole Adhesion Tester  / Shoe Testing Machine For Tear , Break Test
  • 10KN Sole Adhesion Tester  / Shoe Testing Machine For Tear , Break Test
  • 10KN Sole Adhesion Tester  / Shoe Testing Machine For Tear , Break Test
  • 10KN Sole Adhesion Tester  / Shoe Testing Machine For Tear , Break Test
  • 10KN Sole Adhesion Tester  / Shoe Testing Machine For Tear , Break Test
  • 10KN Sole Adhesion Tester  / Shoe Testing Machine For Tear , Break Test
10KN Sole Adhesion Tester  / Shoe Testing Machine For Tear , Break Test
Product Details:
Place of Origin: CN
Brand Name: SKYLINE
Certification: CE
Model Number: SL-T805
Payment & Shipping Terms:
Minimum Order Quantity: 1 unit
Price: negoitable
Packaging Details: plywood case
Delivery Time: 15 work days
Payment Terms: Western Union, MoneyGram, T/T
Contact Now
Detailed Product Description
SKYLINE: Strength Tester For RAPID SOLE ADHESION TEST Capacity: 10KN
Test Speed: 5~500mm/min Test Space: Test Width: About 370mm, Effective Stroke: About 800mm
Test Force Accuracy: Superior To ±1% (±0.5%) Of Indicating Value Deformation Accuracy: Superior To ±1% (±0.5%) Of Indicating Value
Resolution: 1/200000 Weight: 300kg
High Light:

tensile strength test equipment

,

tensile strength tester

10KN Sole Adhesion Tester / Shoe Testing Machine For Tear , Break Test



Use

Tensile testing machine is suitable for testing the relationship between material force and deformation, and can conduct tension, bending, peeling, compression, sagging, adhesion, tear and other mechanical tests and analysis to metal and nonmetal raw material and workpiece.



1.Mechanical test like tensile,compression,bending,tearing,and others.

2.Doule-control function by touch screen and computer ;

3.Indicating real test curves of all kinds ;

4.Easy and fast operation ;

5.Meeting standard : ASTM, DIN, EN ,GB/T etc



Technical parameters

 Model  SL-T805
 Maximum test  10kN
 Measuring Range  0.4%-100% of Max Testing Force
 Resolution  1/200000
 Precision Grade:  1 grade
 Control System  5~500mm/min
 Test Space  Test width: about 370mm, effective stroke: about 800mm

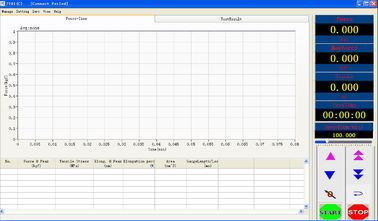

 Operation Mode  Liquid crystal touch screen or special English test software operation
 Safety Device  Overload emergency stop, upper and lower stroke limit, leakage automatic power off, automatic breakpoint stop
 Test Force Accuracy  Superior to ±1% (±0.5%) of indicating value
 Deformation Accuracy  Superior to ±1% (±0.5%) of indicating value
 Power Supply System  220V 50HZ
 Fixture Configuration  Select a pair according to user product test requirement
 Work Environment  Temperature RT15℃, humidity 20%-80%
 Machine Size  800*400*1800mm
 Machine Weight  About 300KG
