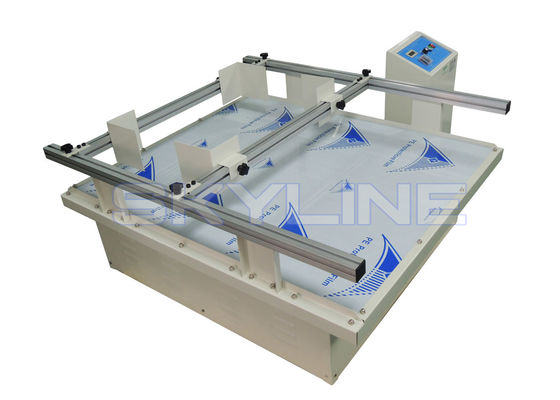

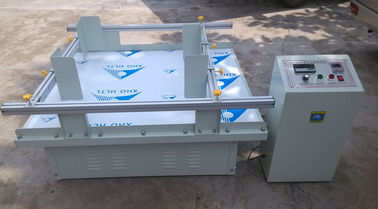

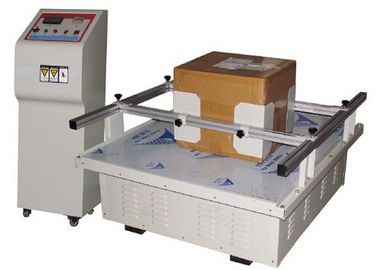

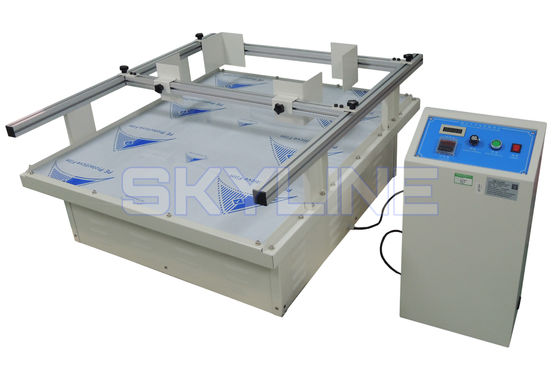

100kg Environmental Test Chamber Transportation Vibration Test For Package Test

100kg Environmental Test Chamber Transportation Vibration Test For Package Test

  • 100kg Environmental Test Chamber Transportation Vibration Test For Package Test
  • 100kg Environmental Test Chamber Transportation Vibration Test For Package Test
  • 100kg Environmental Test Chamber Transportation Vibration Test For Package Test
  • 100kg Environmental Test Chamber Transportation Vibration Test For Package Test
100kg Environmental Test Chamber Transportation Vibration Test For Package Test
Product Details:
Place of Origin: China
Brand Name: SKYLINE
Certification: CE
Model Number: SL-T18
Payment & Shipping Terms:
Minimum Order Quantity: 1 unit
Price: Negoitable
Packaging Details: Plywood case
Delivery Time: 5 working days
Payment Terms: Western Union, T/T, MoneyGram
Supply Ability: 10 pcs/ month
Contact Now
Detailed Product Description
SKYLINE: Transportation Vibration Tester Vibrating Frequency: 100-300rpm
Vibrating Range: 25.4mm(1") Maximum Load: 100kg 300kg 500kg 1000kg
Effective Area Of Table: 110 X 98CM 130 X 120CM 180 X 150CM Dimemsion: 120 X 110CM 140 X130CM 190 X 160CM
High Light:

environmental testing equipment

,

uv accelerated weathering tester

Enviromental Test Chamer 100kg Transportation Vibration Tester for package Test



Product information

Universal Vibration Test Machine/Simulated Transport Vibration Tester is applied to test the vibration-resistance of packed Toys, electronics, furniture, gift, ceramics, equipment, etc., under simulated transport conditions, according to American and EU transport standard (ASTM,IEC).



Simulation products in transportation state of environmental assess product packaging design, the rationality and structure strength.

Test object:Packaging for shipment of the products.
Test program:Will the packaging products with a certain speed vibration corresponding time.
Result assessment: By vibration testing products shall promote function and appearance were damaged.

Technical Parameters

 Vibrating frequency  100-300rpm
 Vibrating range  25.4mm(1")
 Timer  0-99999 hour
 Vibrating manner  Rotary (positives type)turn
 Maximum load  100kg 300kg 500kg 1000kg
 Effective area of table  110 X 98CM 130 X 120CM 180 X 150CM
 Motor  1HP(750W) 3HP(2.25kw) 5HP(3.75KW) 7HP(5.25KW)
 Dimemsion  120 X 110CM 140 X130CM 190 X 160CM



Transportation Vibration Testing Machine.pdf
